Manifold Pressure/Vacuum Sensor: Service and Repair

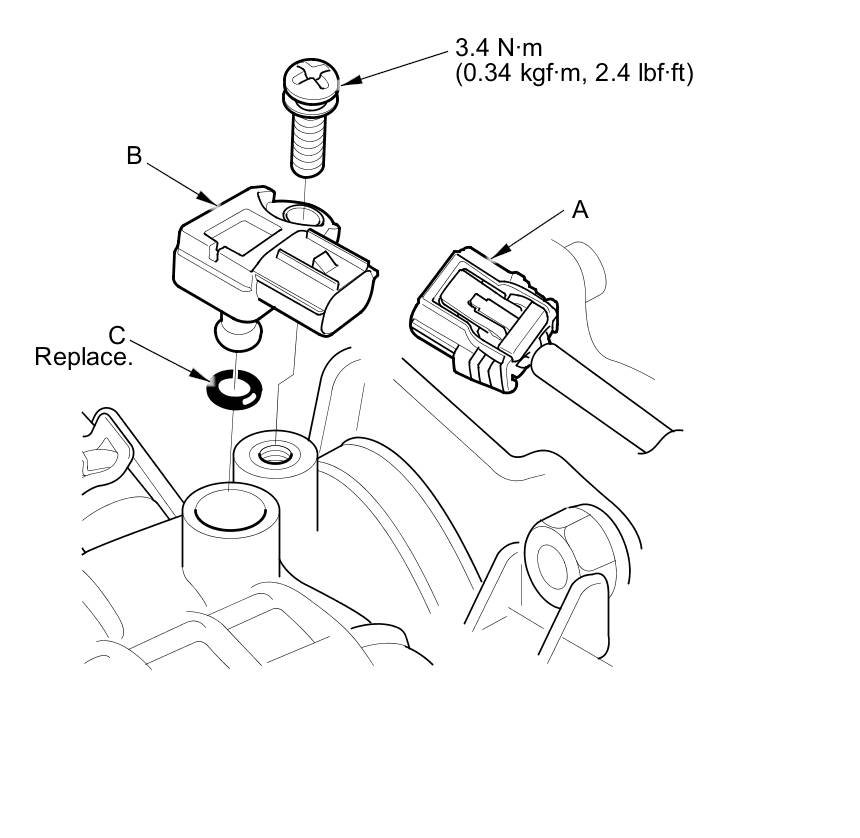

MAP Sensor Replacement

1. Remove the cowl cover and the under-cowl panel.

2. Disconnect the MAP sensor 3P connector (A).





3. Remove the MAP sensor (B).

4. Install the parts in the reverse order of removal with a new O-ring (C).
