CMP Pulse Plate Removal/Installation

CMP Pulse Plate Removal and Installation

Removal

1. Remove the air cleaner Service and Repair.

2. Remove the cylinder head cover Cylinder Head Cover Removal.

3. Remove the harness holder mounting bolts and the ground cable, then remove the harness holder.

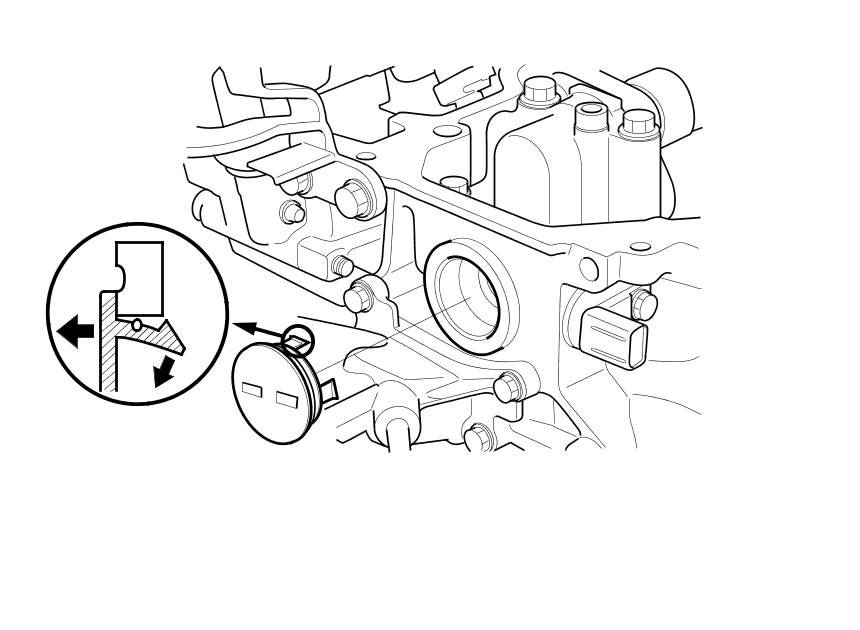

4. Remove the cylinder head plug.

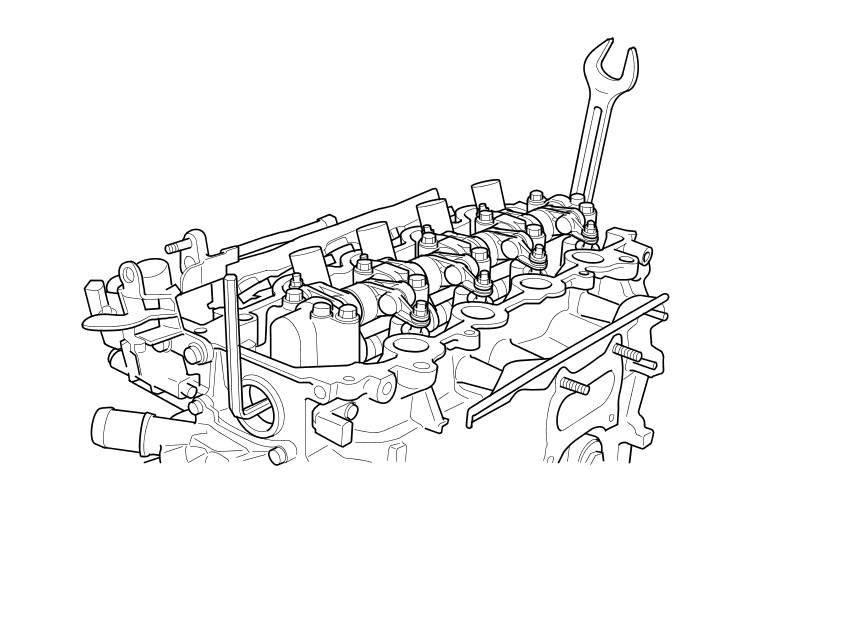

5. Hold the camshaft with a 27 mm open-end wrench, then loosen the bolt.

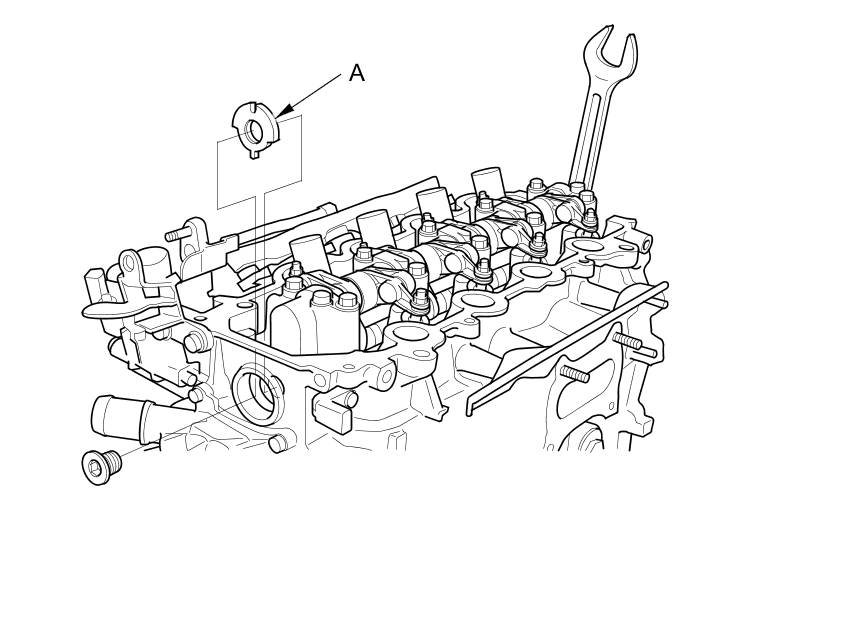

6. Remove the CMP pulse plate (A).






Installation

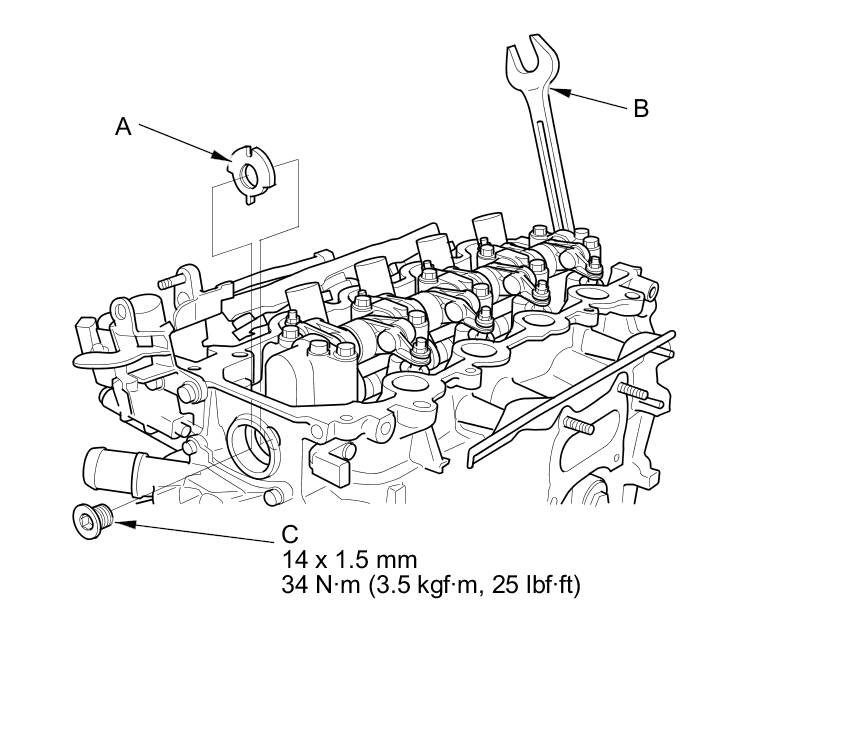

1. Install the CMP pulse plate (A).






2. Hold the camshaft with a 27 mm open-end wrench (B), then tighten the bolt (C).

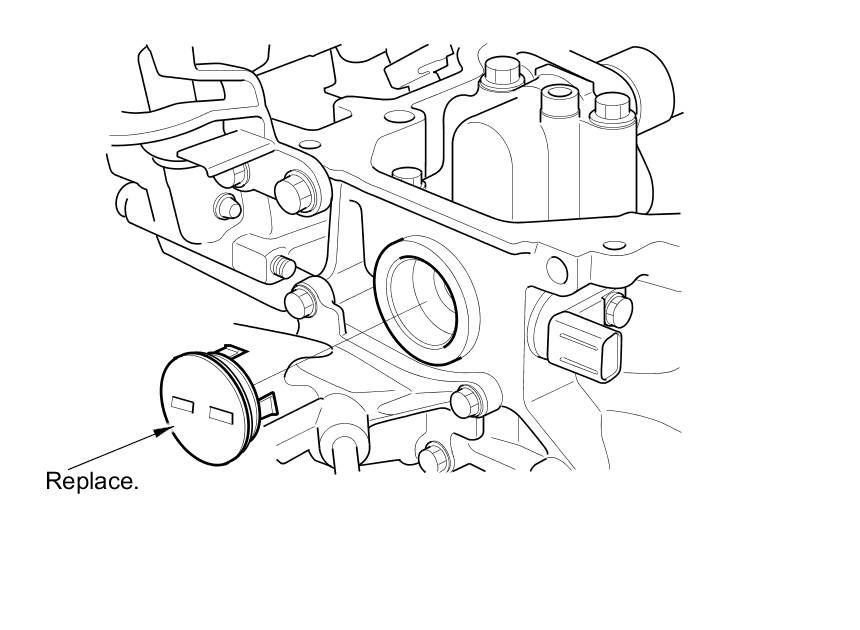

3. Install the new cylinder head plug.





4. Install the harness holder and the ground cable.

5. Install the cylinder head cover Cylinder Head Cover Installation.

6. Install the air cleaner Service and Repair.
