Connector Locations

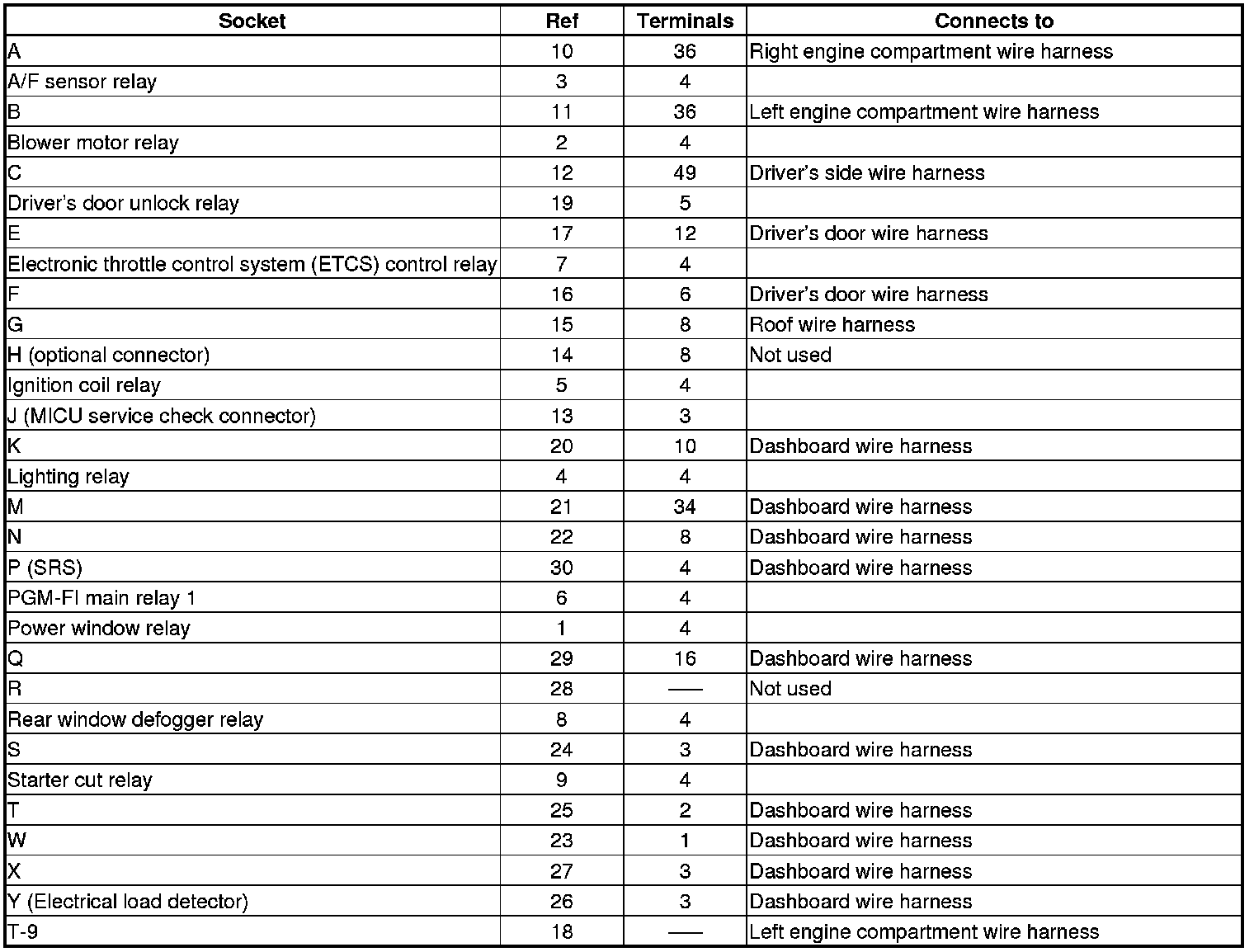

Fuse/Relay Box Connector Locations

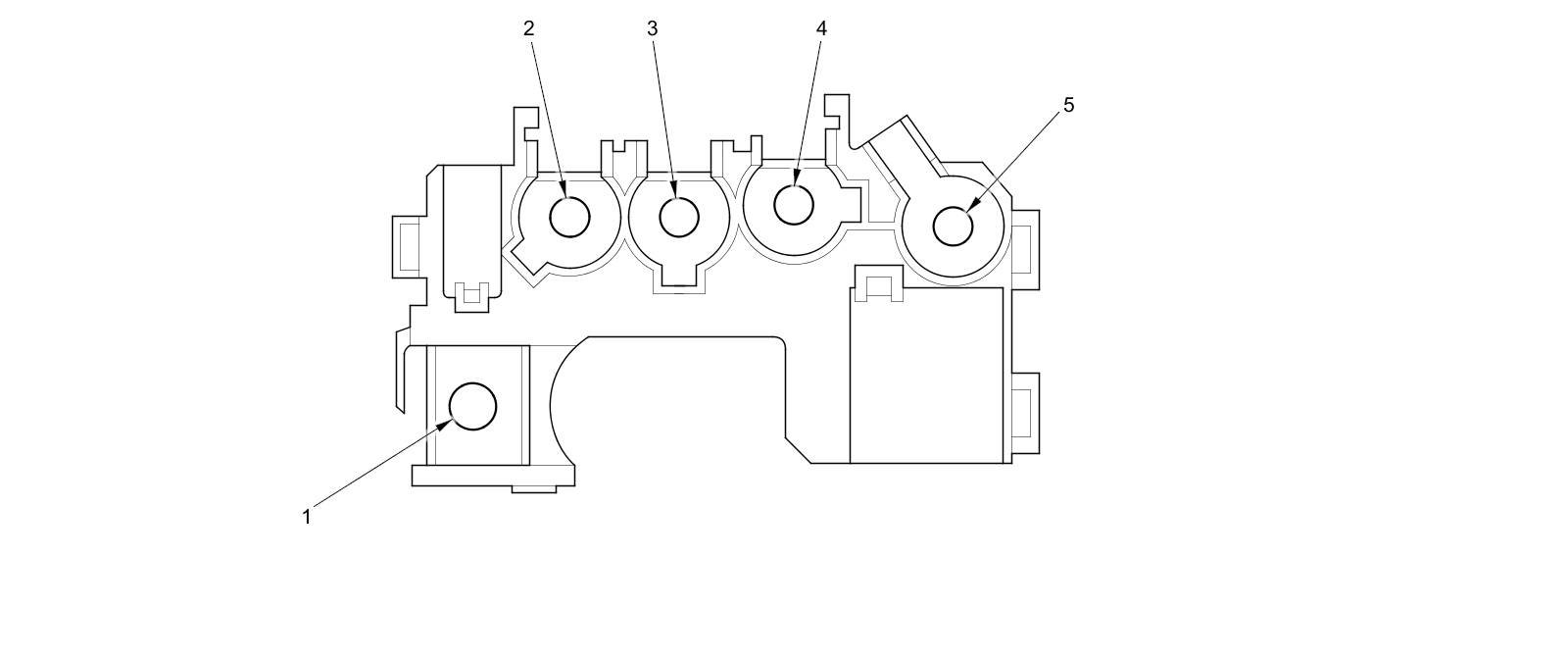

Battery Terminal Fuse Box

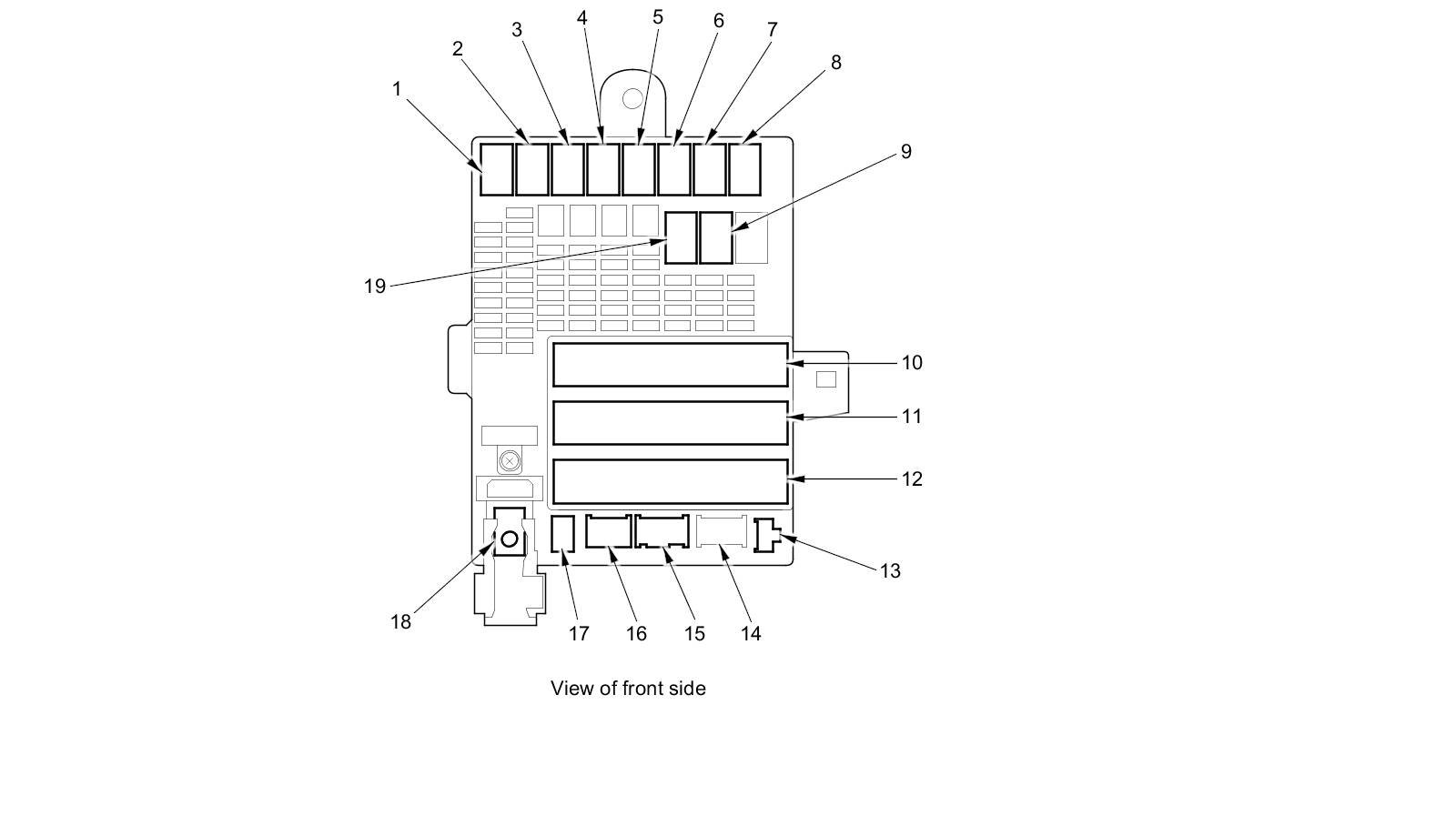

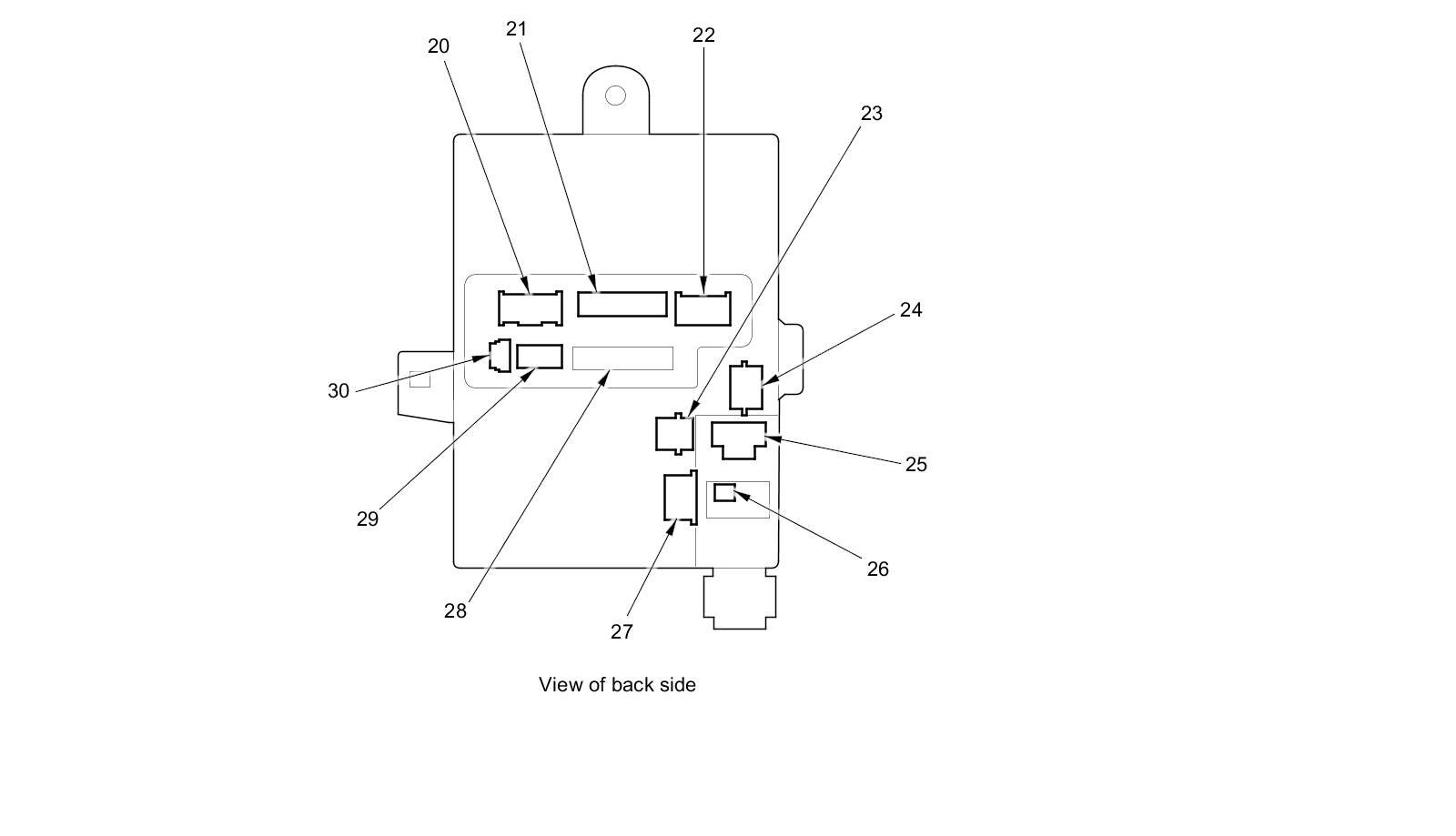

Under-dash Fuse/Relay Box

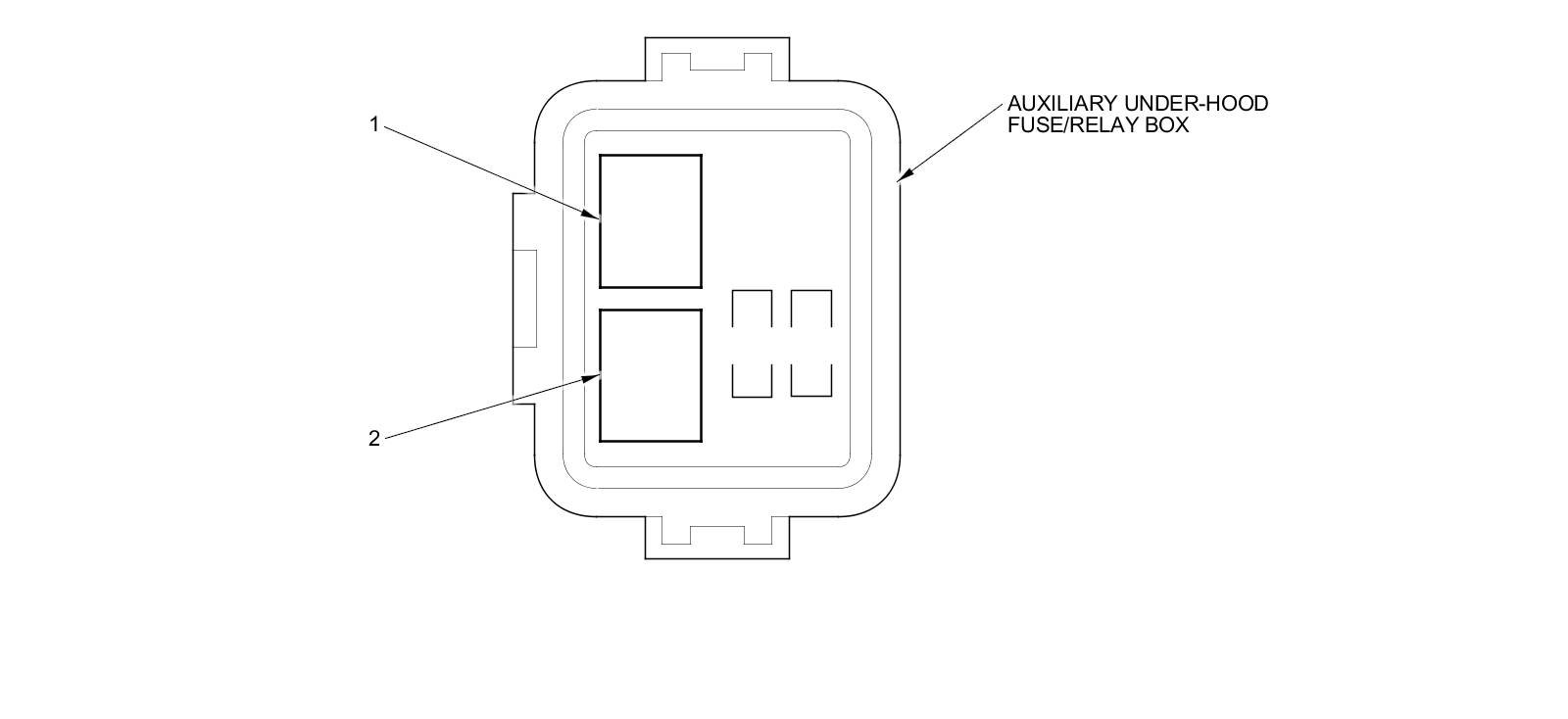

Auxiliary Under-hood Fuse/Relay Box

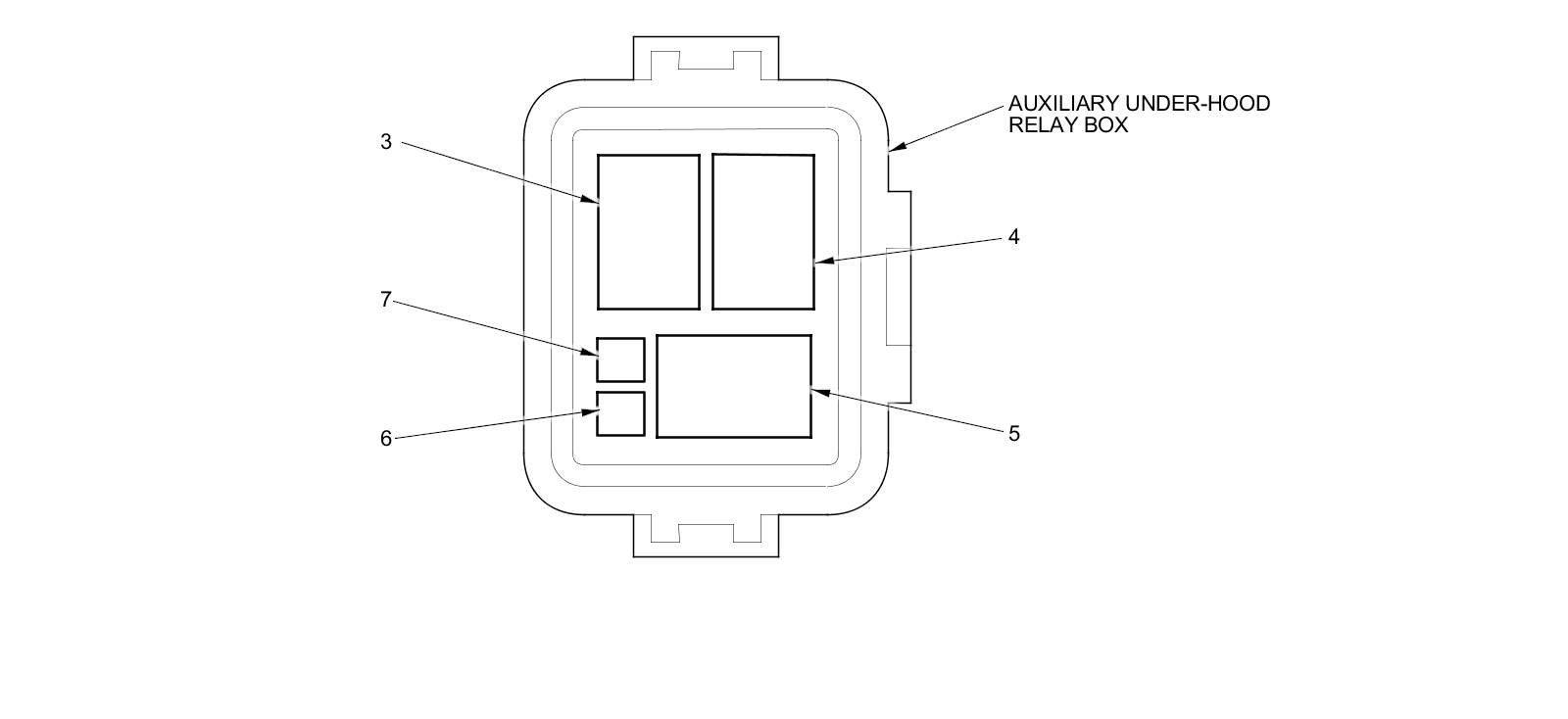

Auxiliary Under-hood Relay Box

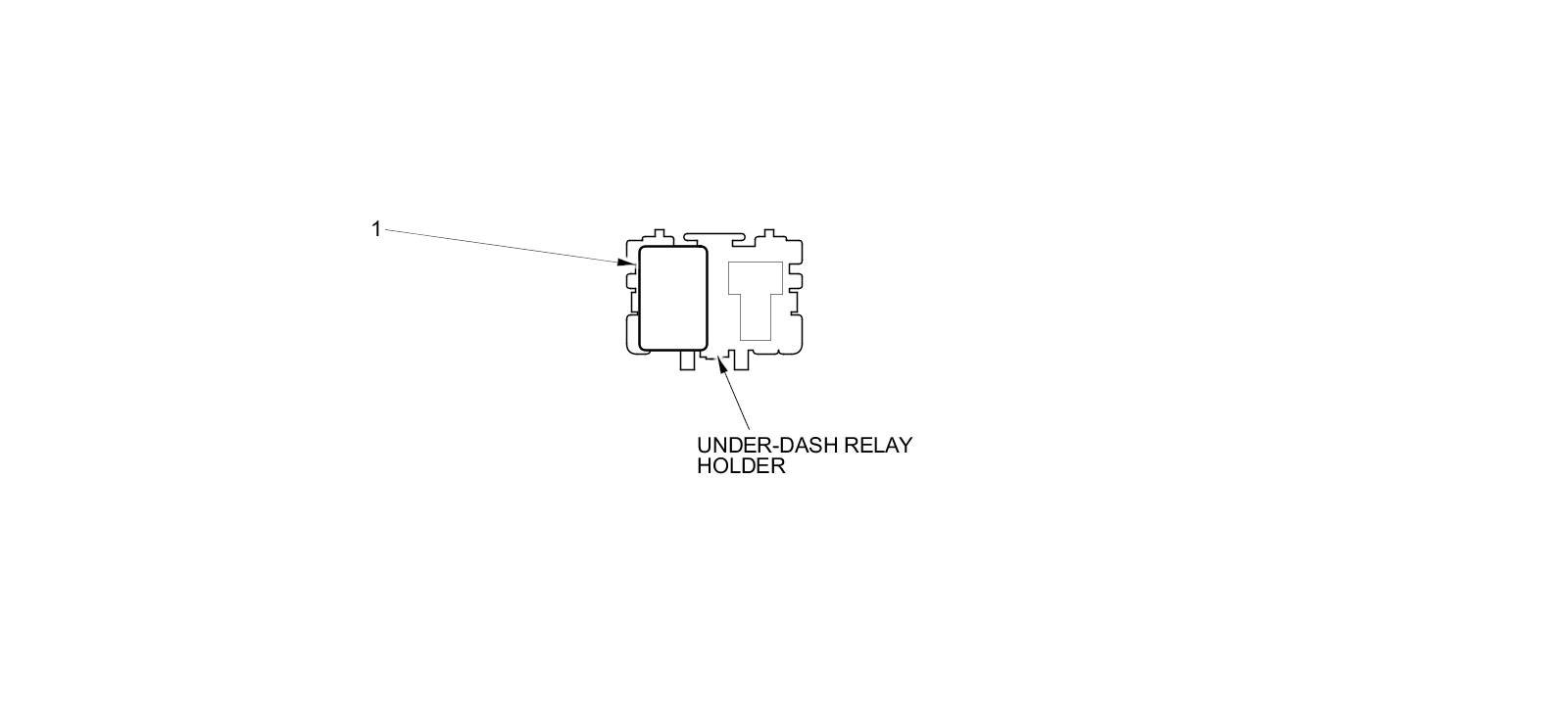

Under-Dash Relay Holder

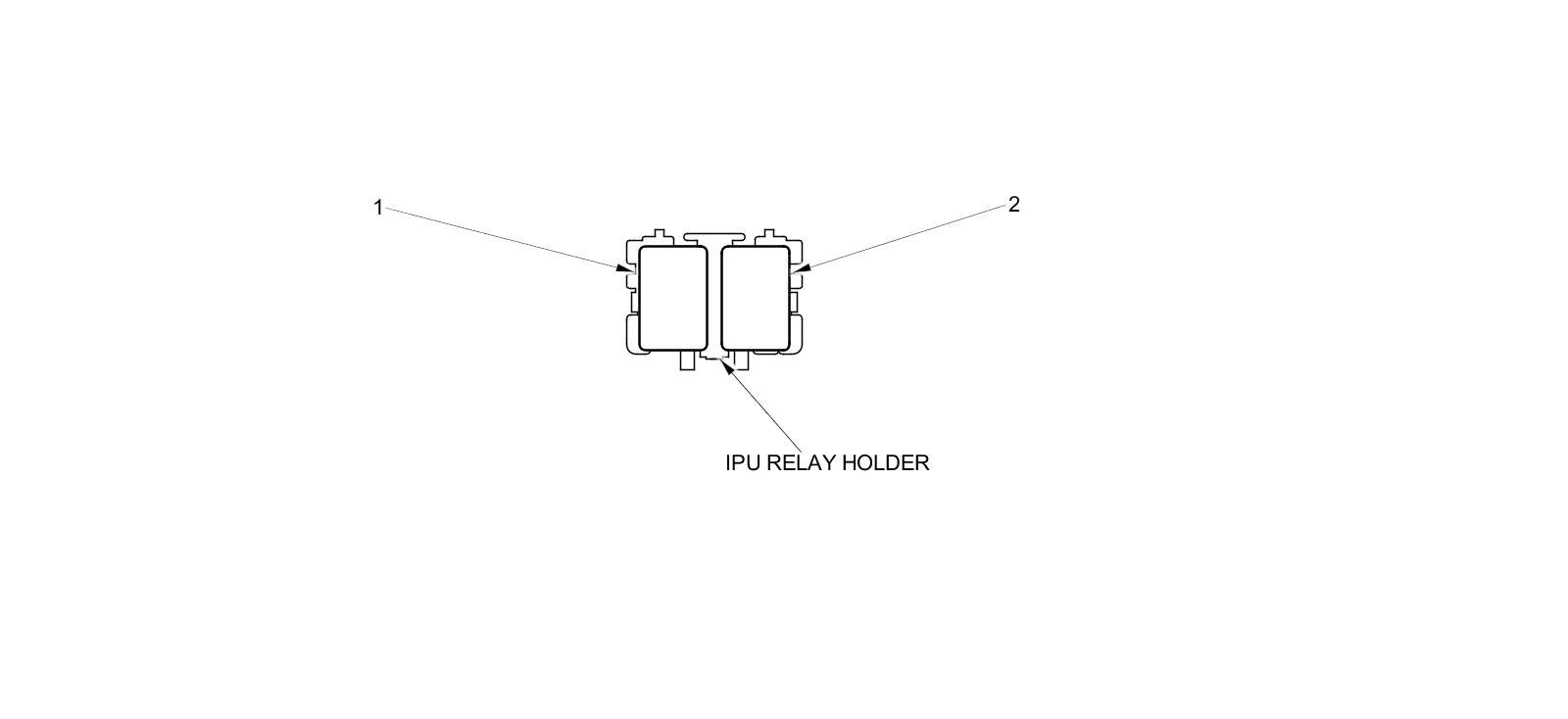

IPU Relay Holder
