Drive Motor Rotor Position Sensor: Service and Repair

IMA Motor Rotor Position Sensor Removal/Installation

1. Remove the IMA motor housing IMA Motor Housing Removal/Installation.

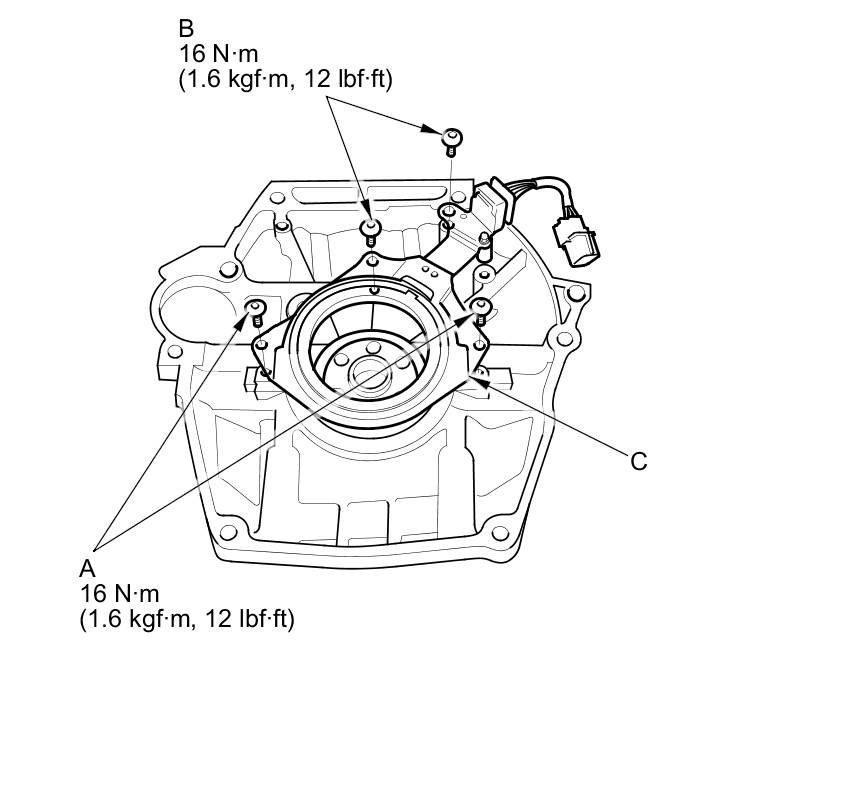

2. Remove the bolts (A, B) and the IMA motor rotor position sensor (C).





3. Install the parts in the reverse order of removal.

NOTE: Tighten the bolts (A) first, then tighten the bolts (B).

4. Do the motor rotor position calibration procedure.
