Home >> Honda >> 2012 >> Insight L4-1.3L Hybrid >> Repair and Diagnosis >> Diagrams >> Connector Views >> Trunk / Liftgate Switch >> Hatch Outer Handle Switch Connector View

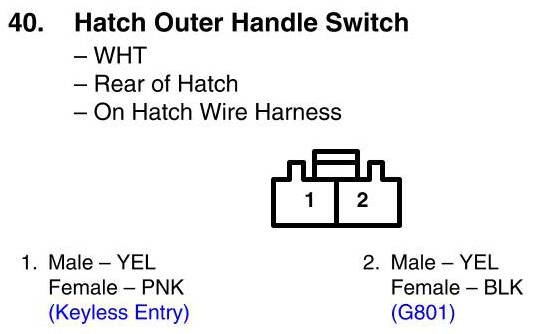

Hatch Outer Handle Switch Connector View
