Home >> Honda >> 2012 >> Fit L4-1.5L >> Repair and Diagnosis >> Heating and Air Conditioning >> Compressor Clutch Relay >> Locations

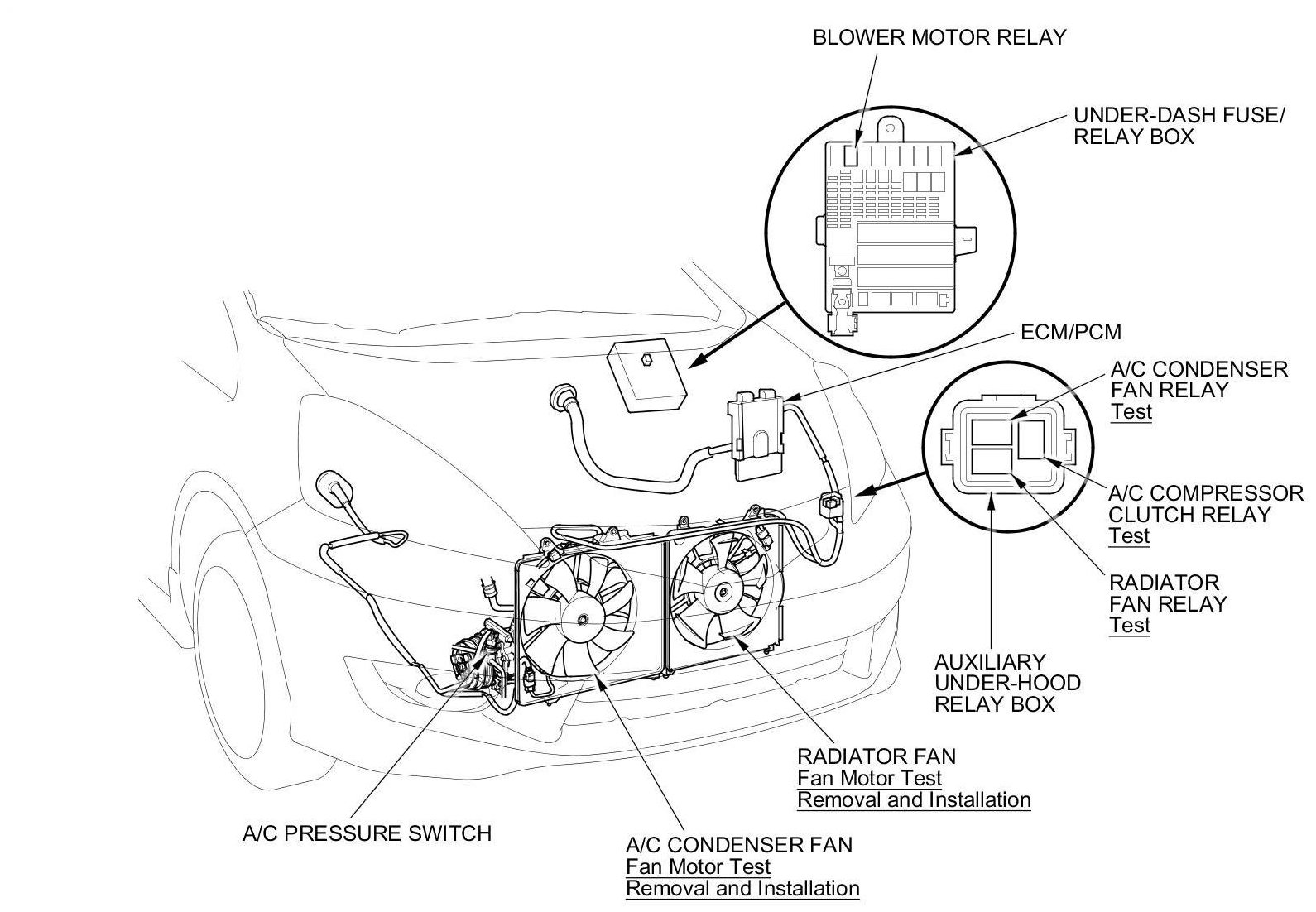

Compressor Clutch Relay: Locations




Heating and A/C Systems Component Location Index
