Air Conditioning Switch: Testing and Inspection

A/C Switch Test

1. Remove the A/C switch Service and Repair.

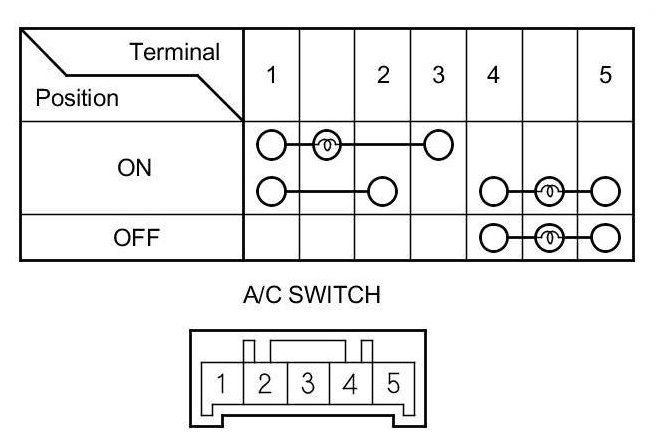

2. Check for continuity between the terminals in each switch position according to the table.





3. If the continuity is not as specified, replace the bulbs or the switch.
