Power Window Switch
>>

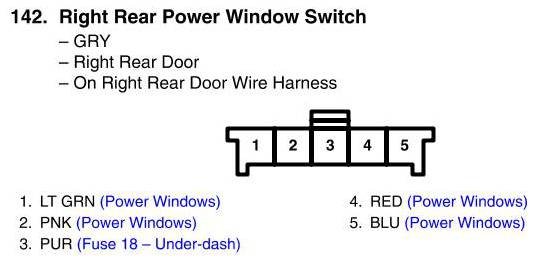

Right Rear Power Window Switch Connector View
Right Rear Power Window Switch Connector View
