Auxiliary Input / Output Jack, Entertainment System
>>

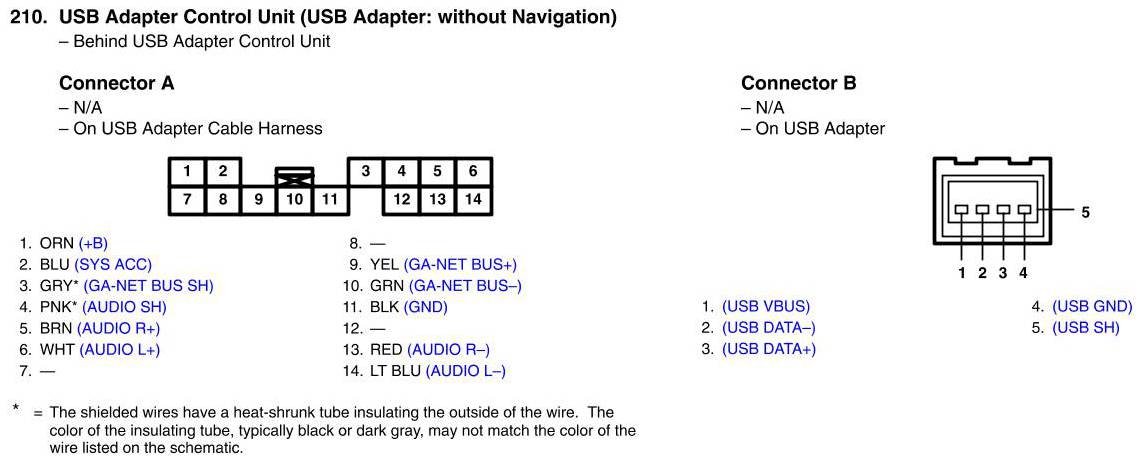

USB Adapter Control Unit Connector View (USB Adapter : Without Navigation)
USB Adapter Control Unit Connector View (USB Adapter : Without Navigation)
