Timing Chain Tensioner

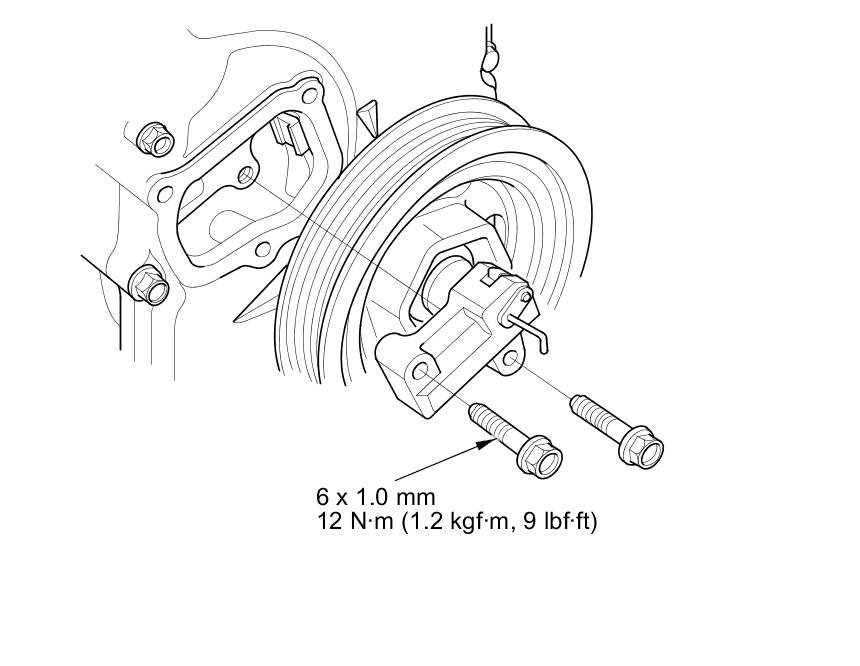

Auto-tensioner

NOTE: Check the auto-tensioner cam position. If the position is not aligned, set the first cam to the first edge of the rack.
