Power and Ground Distribution
>>
Power Distribution Relay
>>
Locations
>>

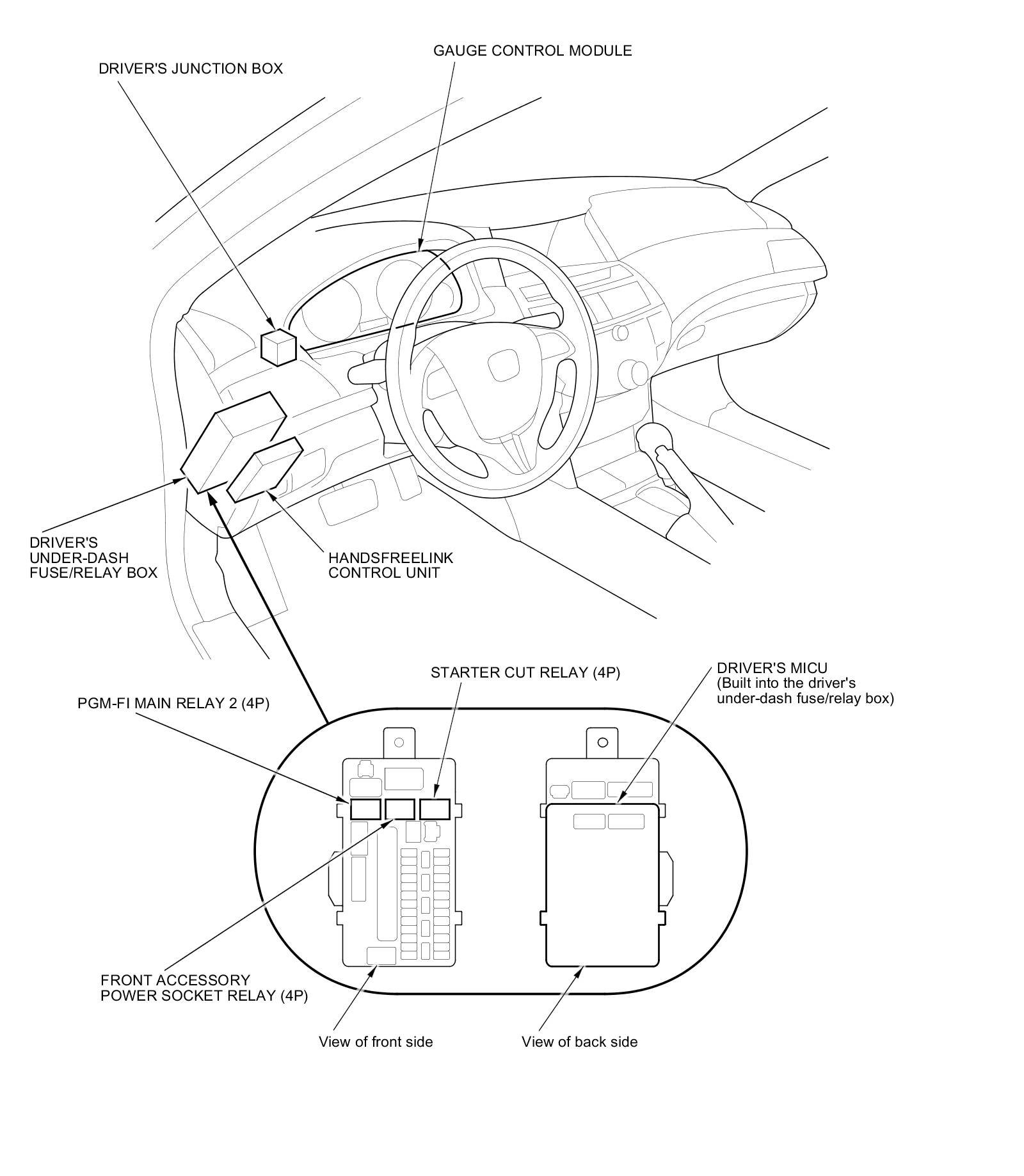

Relay and Control Unit Locations - Dashboard

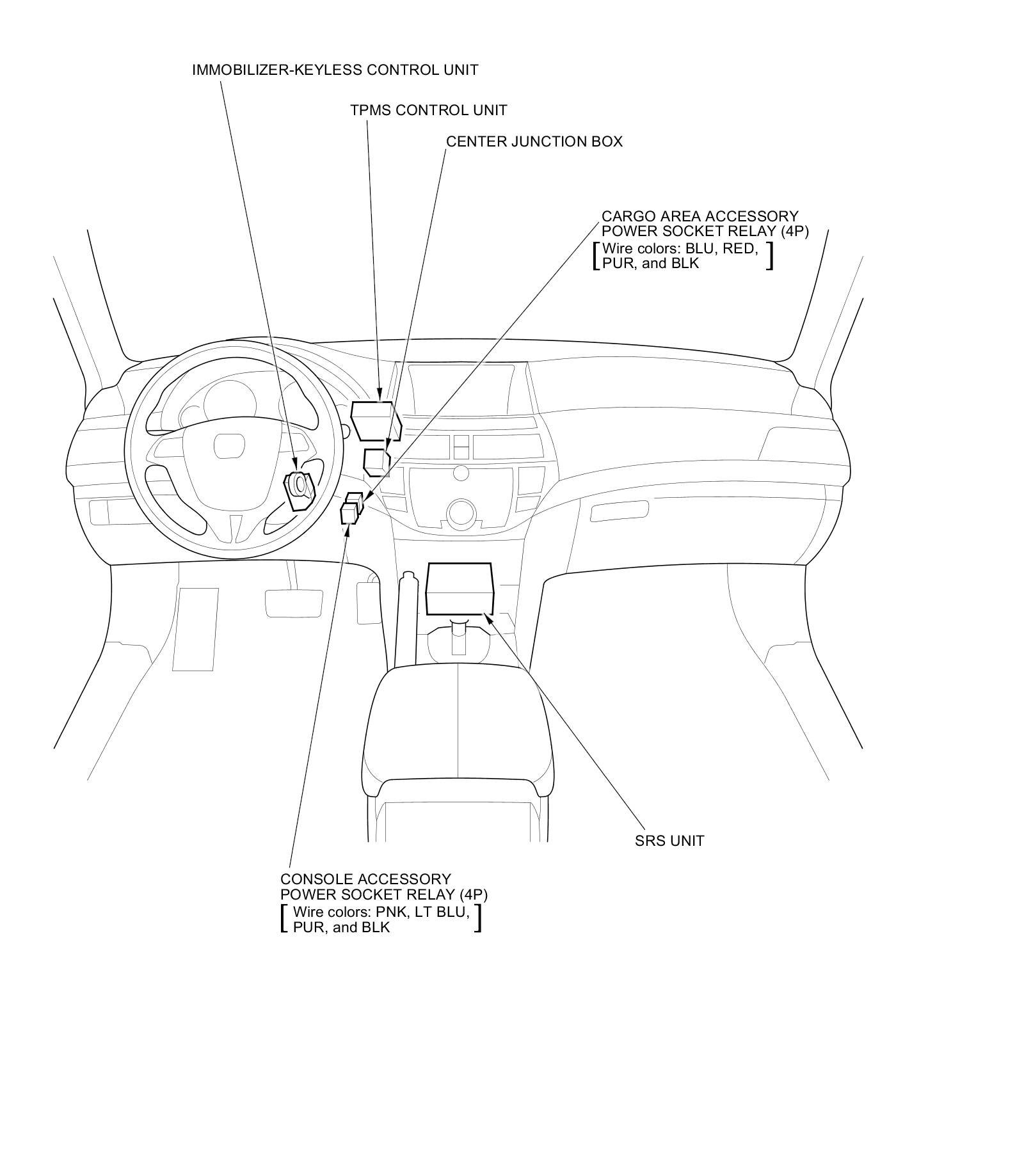

Relay and Control Unit Locations - Dashboard
Relay and Control Unit Locations - Dashboard
