Fuse: Locations

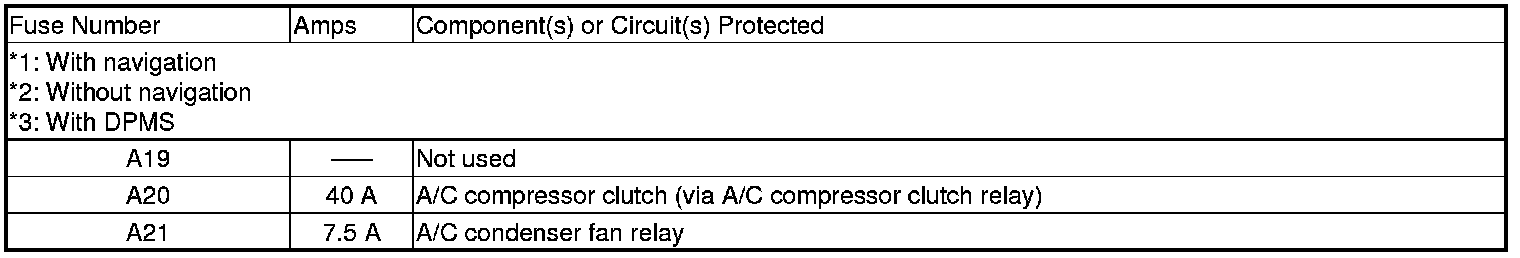

Fuse to Components Index

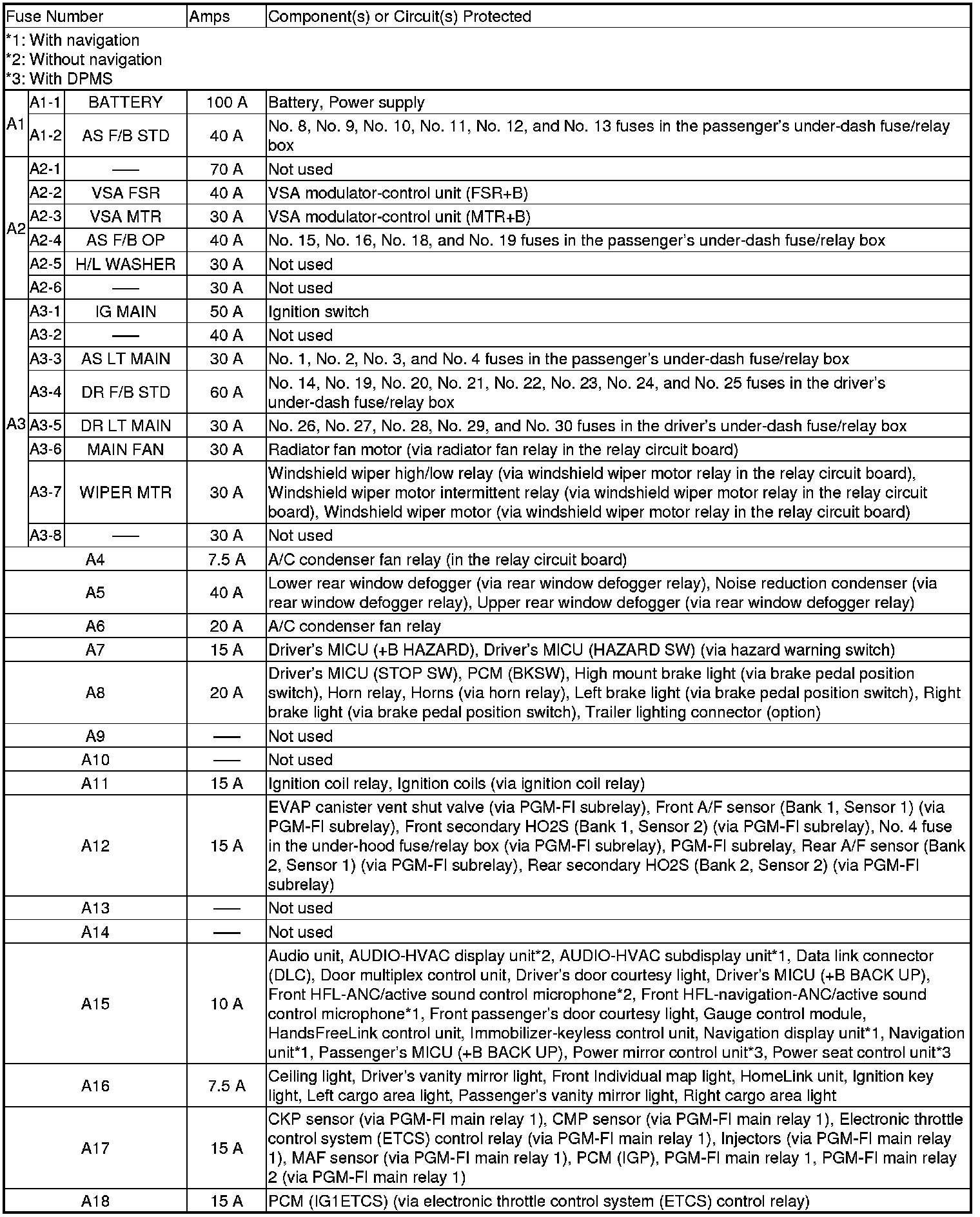

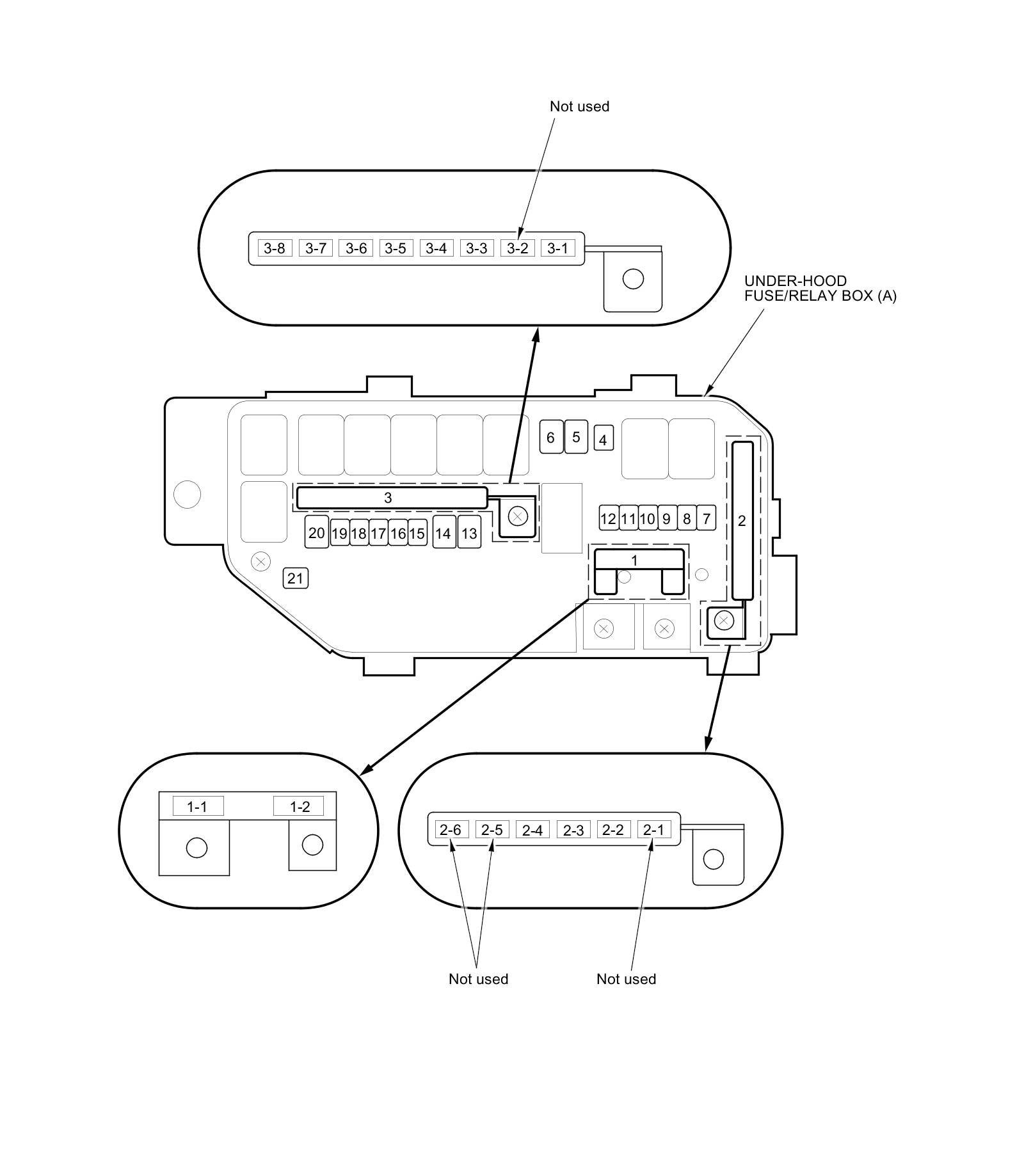

Under-Hood Fuse/Relay Box (A)

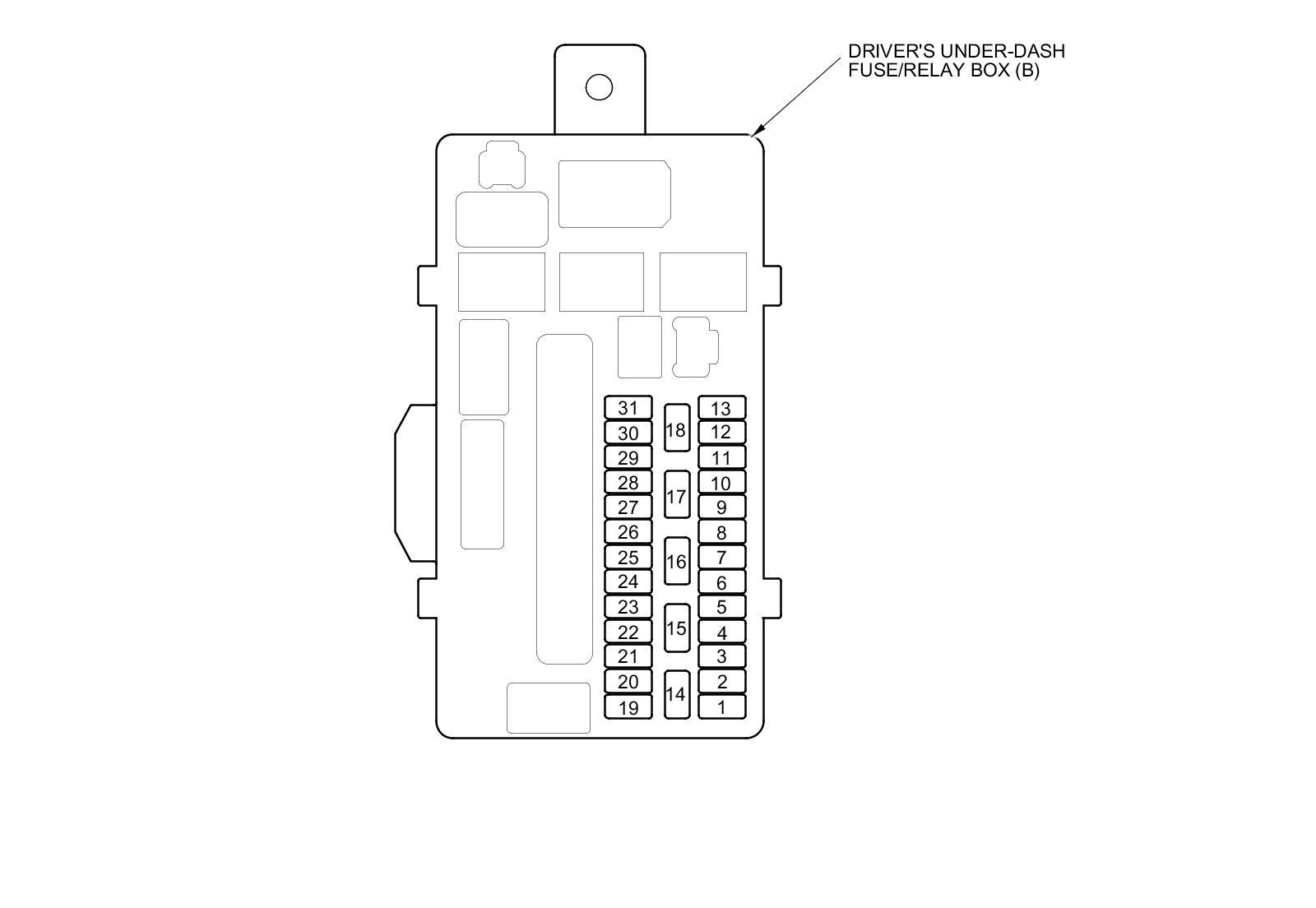

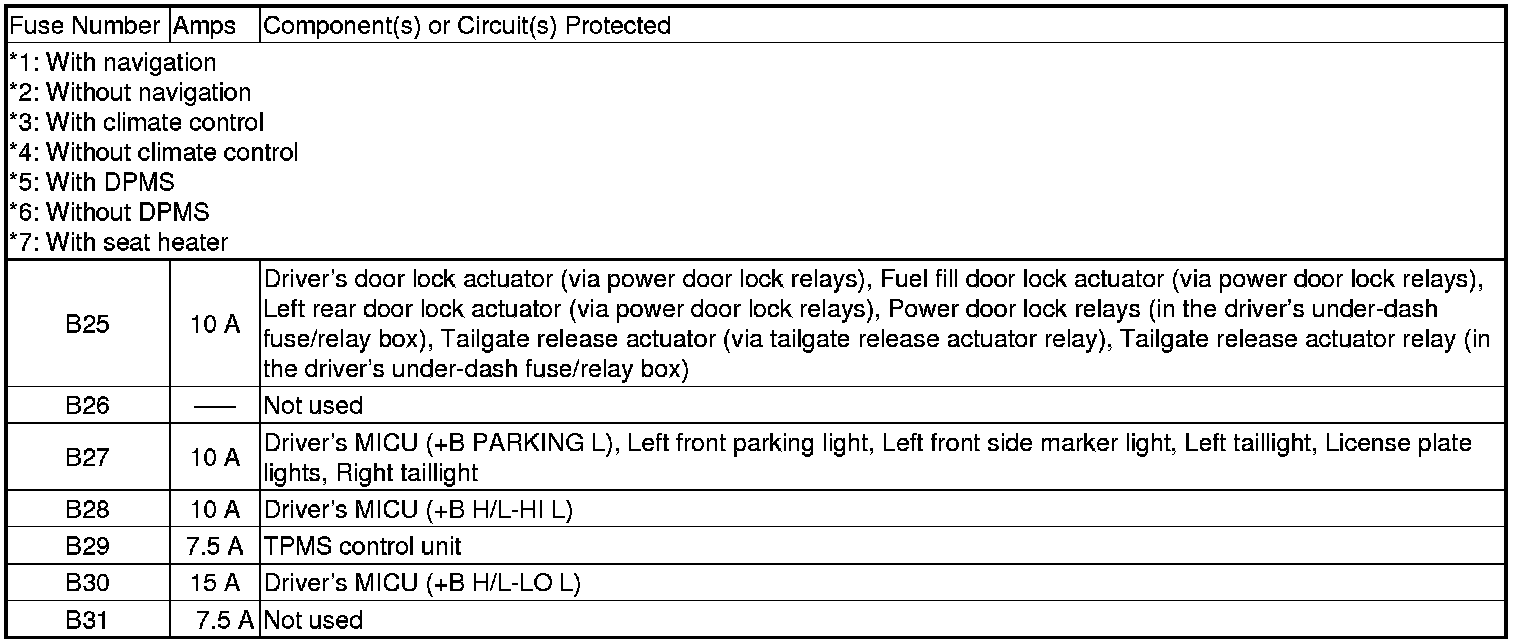

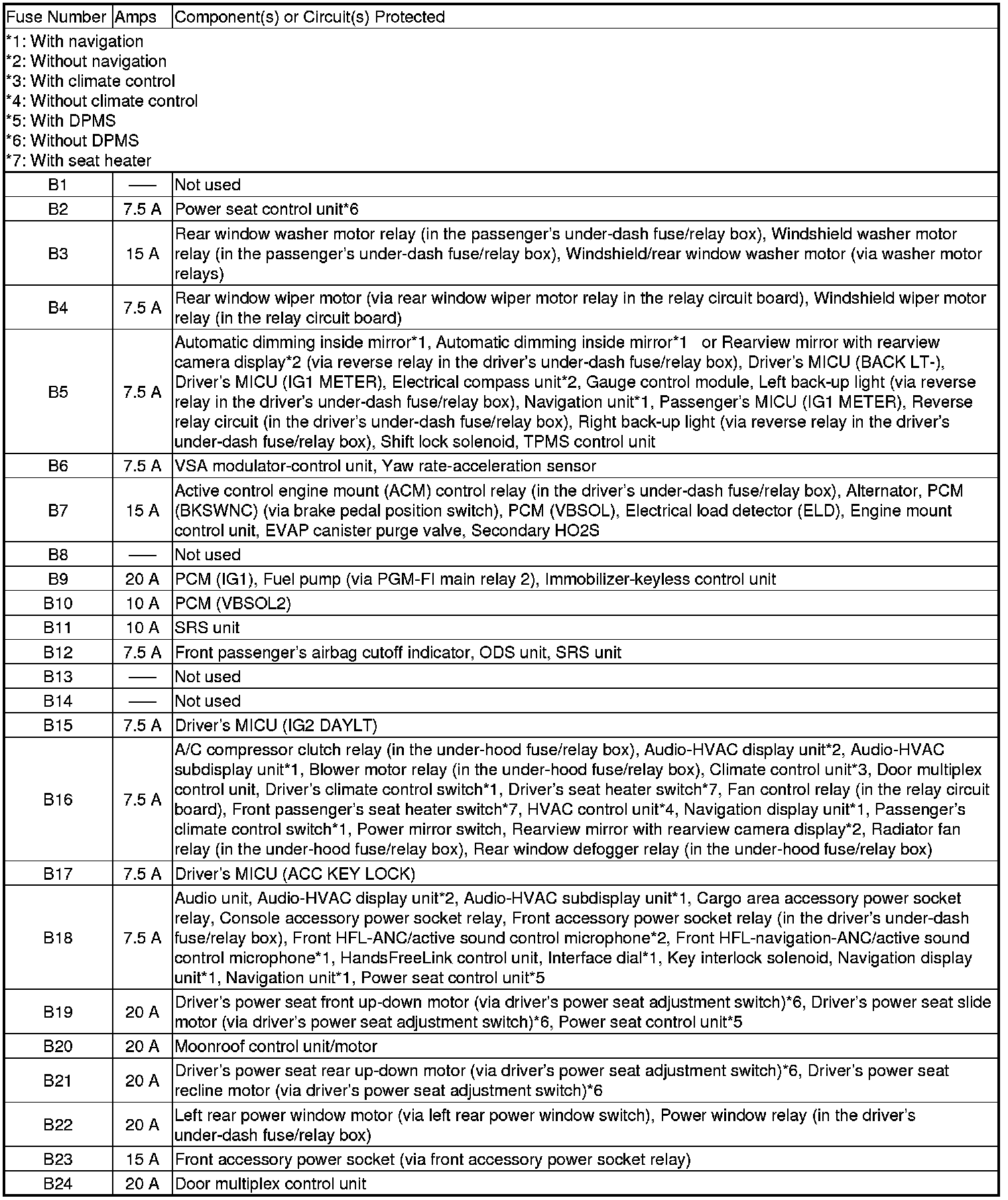

Driver's Under-Dash Fuse/Relay Box (B)

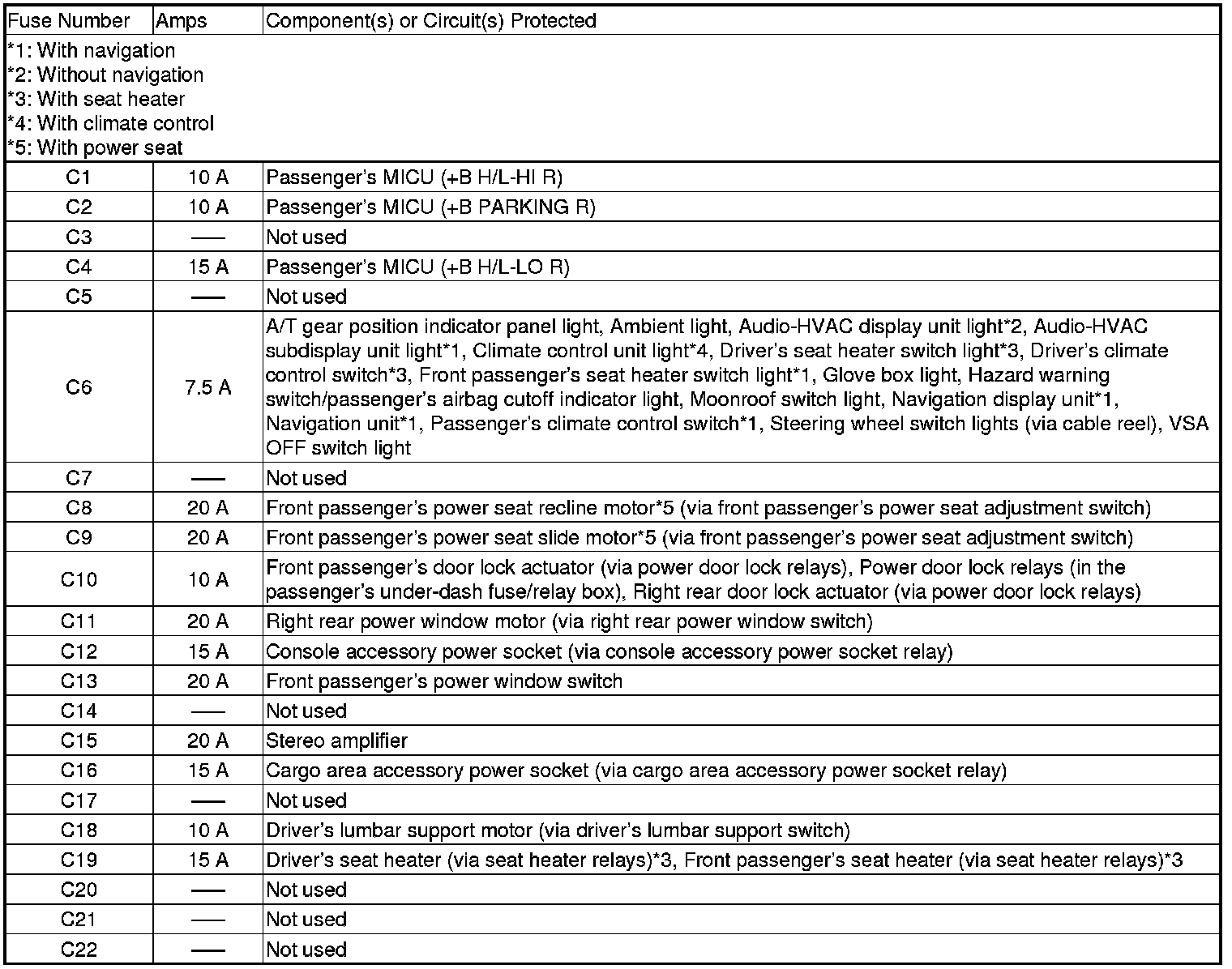

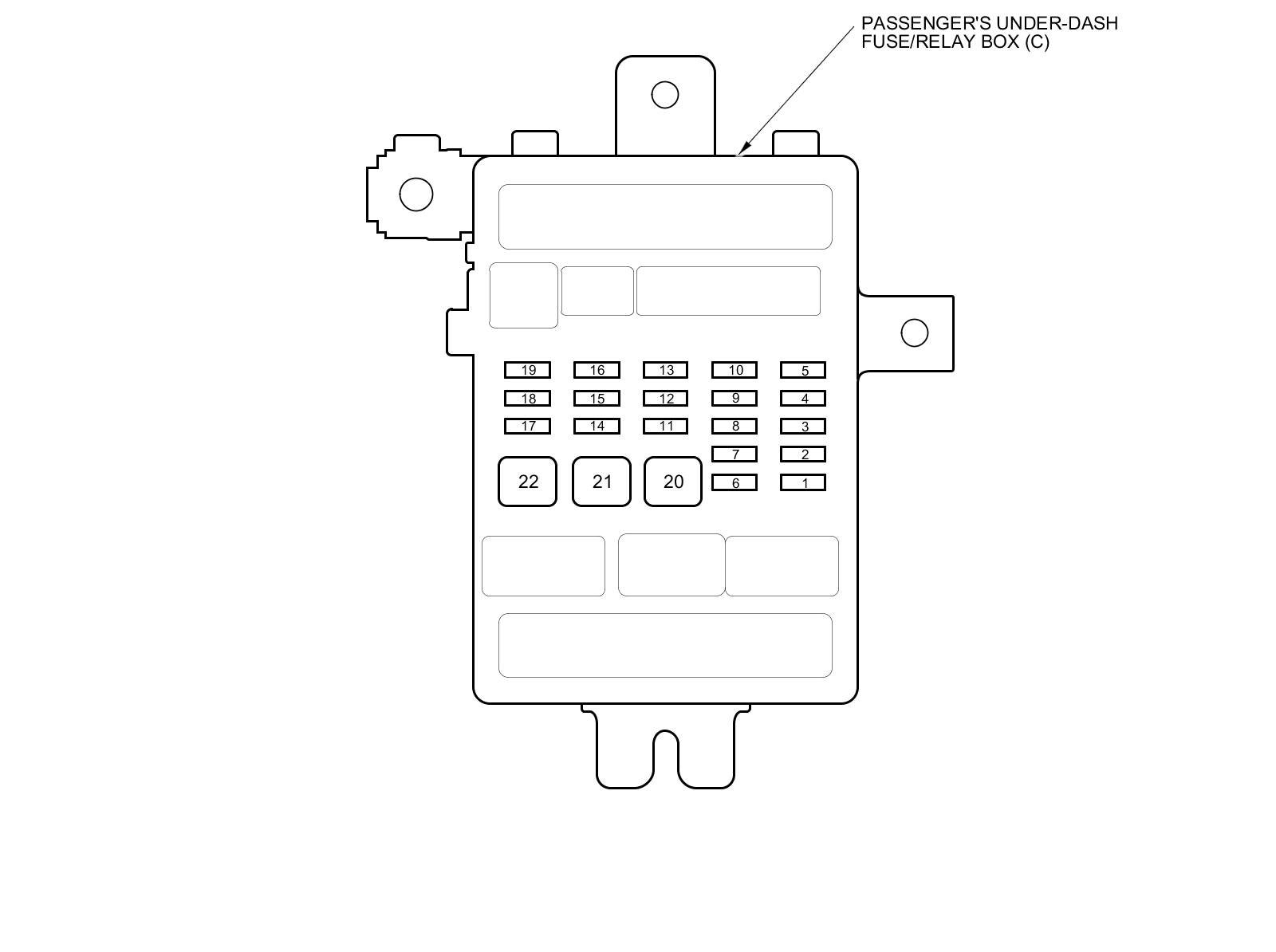

Passenger's Under-Dash Fuse/Relay Box (C)

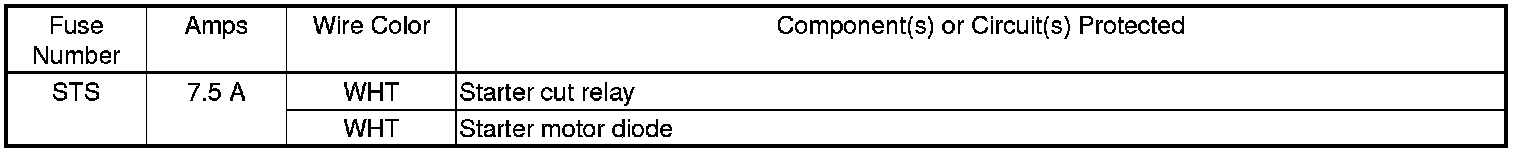

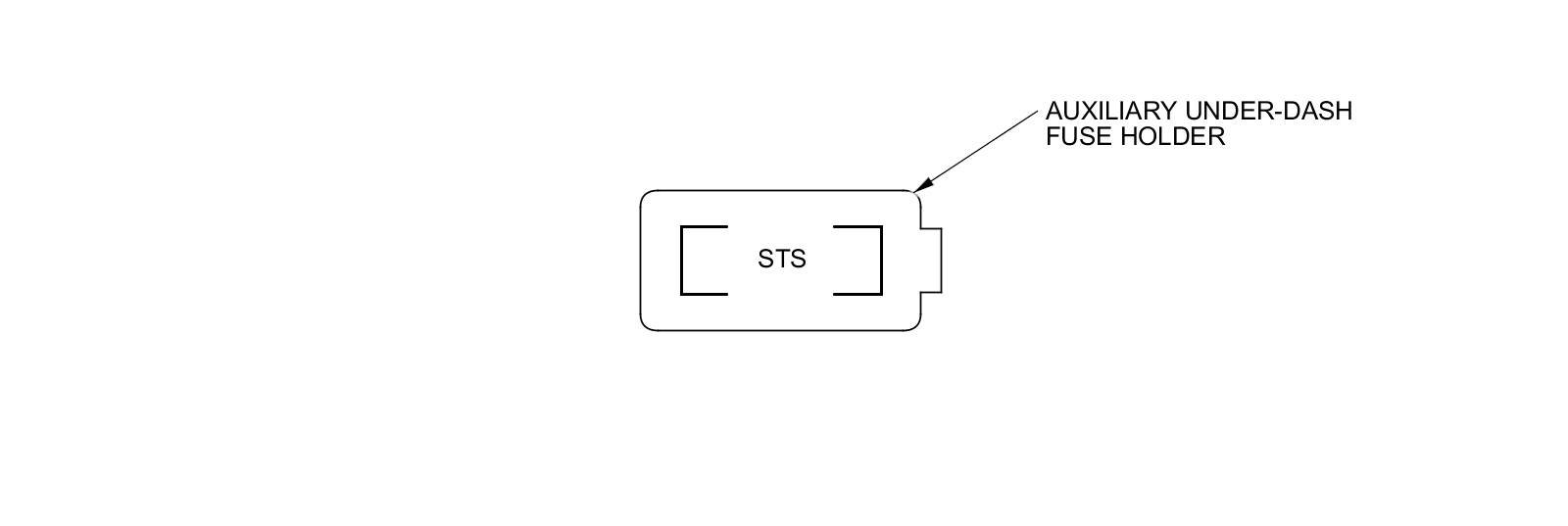

Auxiliary Under-dash Fuse Holder
