Honda
>>
2012
>>
Crosstour 2WD L4-2.4L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse Block
>>
Locations
>>
Component Locations
>>
Relay and Control Unit Locations - Dashboard
Relay and Control Unit Locations - Dashboard
Relay and Control Unit Locations - Dashboard

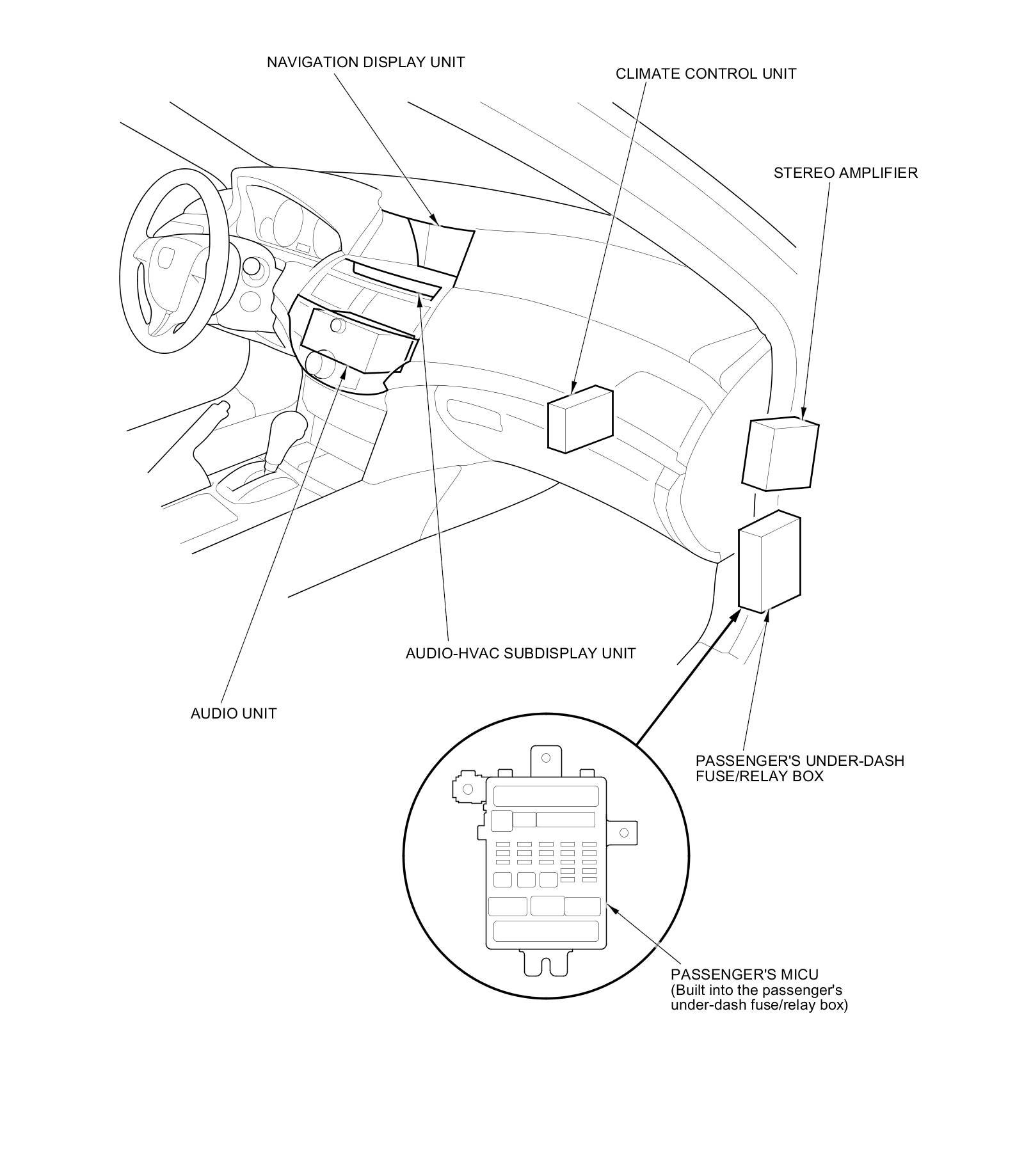

With Navigation

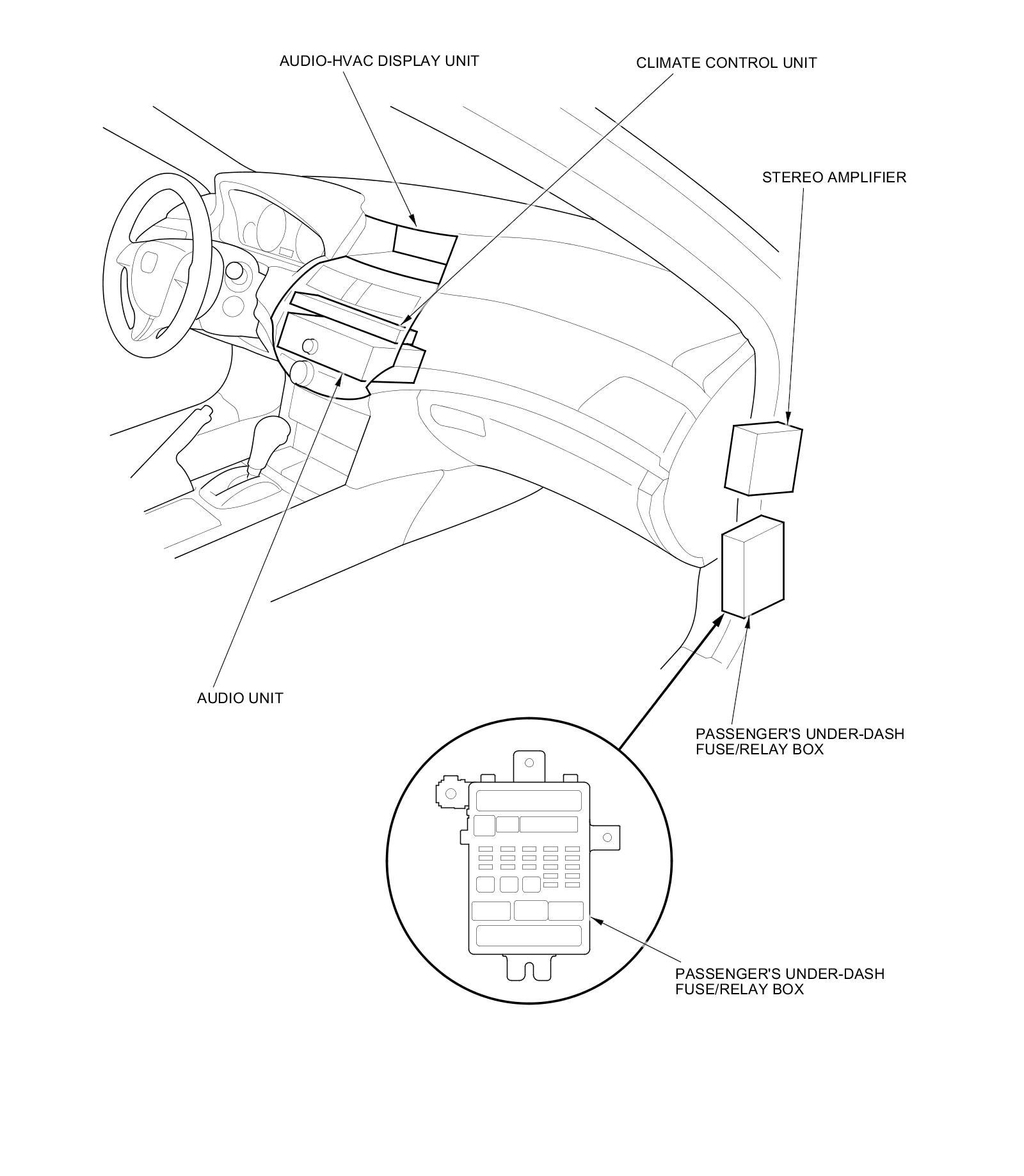

Without Navigation
