Rear Cargo Support Replacement

Rear Cargo Support Replacement

NOTE:

- Put on gloves to protect your hands.
- Take care not to scratch the body or the related parts.

1. Remove these items:

- Rear trim panel Interior Trim Removal / Installation - Cargo Area
- Front floor cover Interior Trim Removal / Installation - Cargo Area

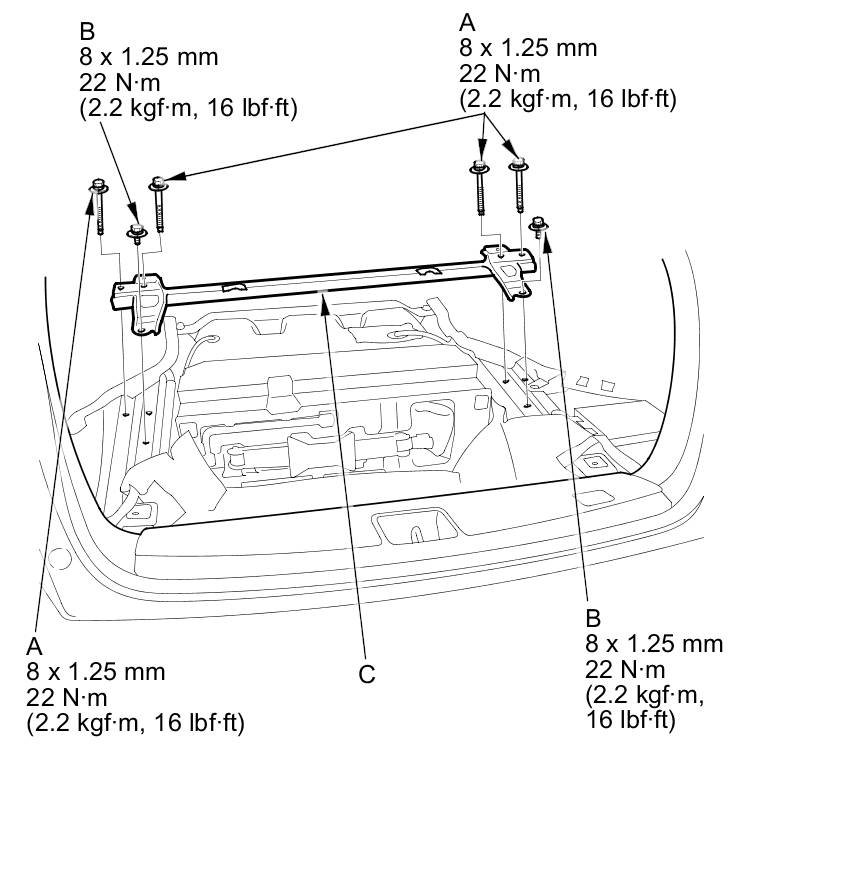

2. Remove the bolts (A, B) securing the rear cargo support (C), then remove the support.






3. Install the support in the reverse order of removal.
