Strut Brace Replacement

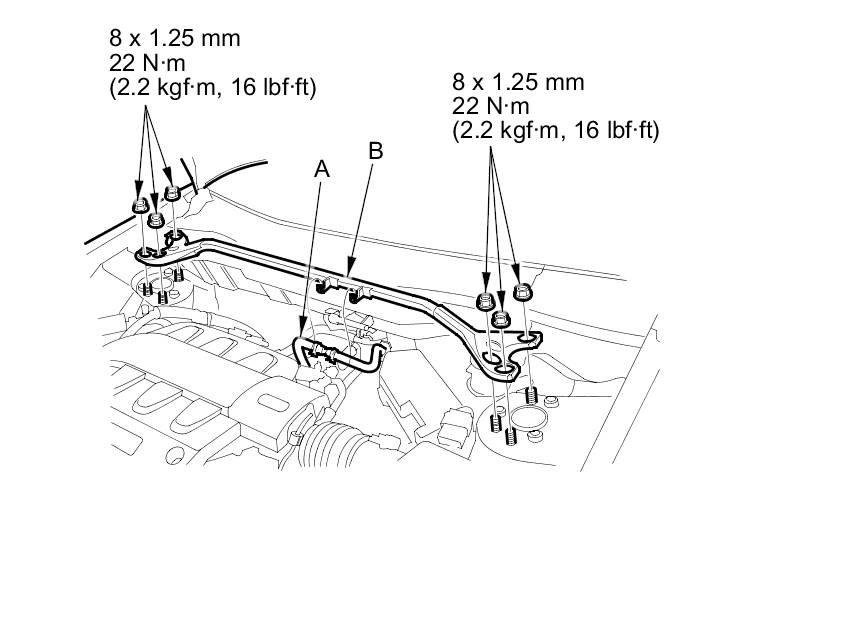

1. Disconnect the brake booster vacuum hose (A) from the strut brace (B).





2. Remove the nuts from the top of the damper, and remove the strut brace.

3. Install the strut brace in the reverse order of removal.
