Home >> Honda >> 2012 >> Civic L4-1.8L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Timing Cover

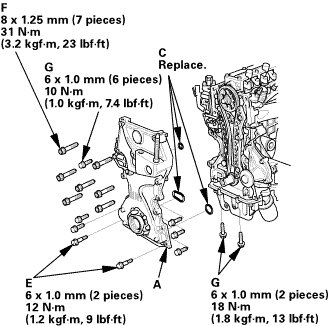

Timing Cover

Cam Chain Cover

Engine Oil Pump Assembly
