Heating And A/C Systems Component Location Index

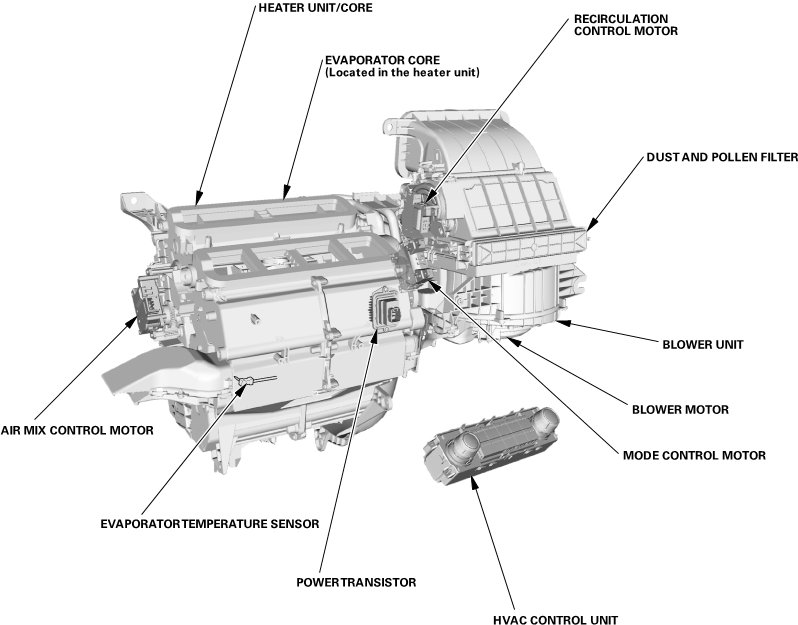

HVAC

Heating and A/C Systems Component Location Index

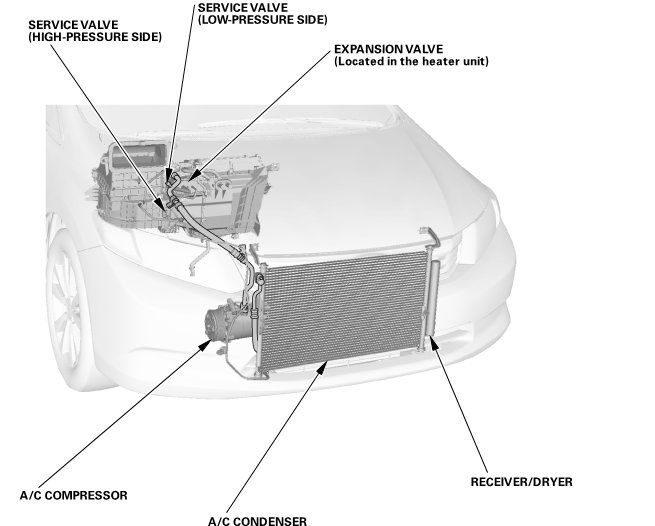

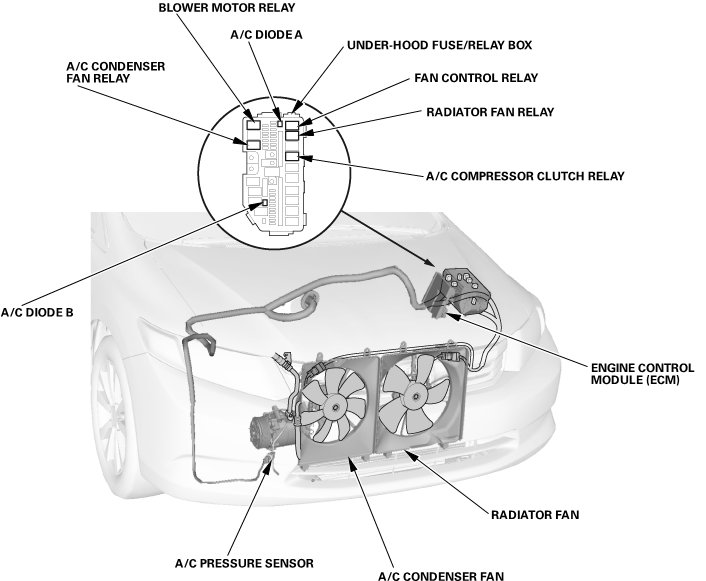

Except K24Z7 engine

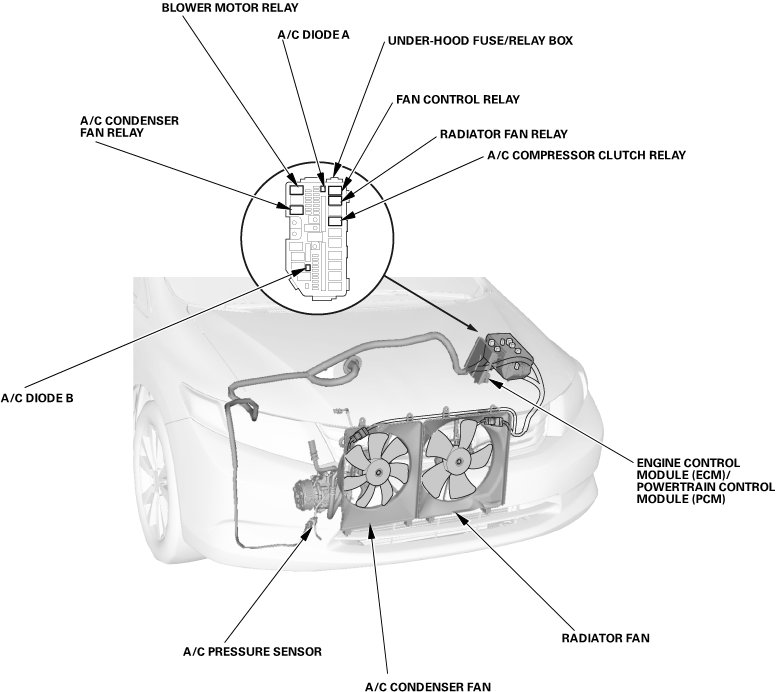

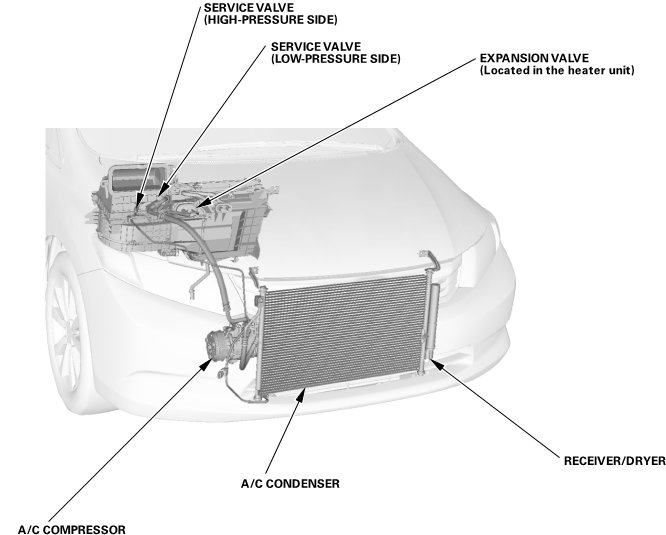

K24Z7 engine










Except K24Z7 engine










K24Z7 engine
