Intake Manifold

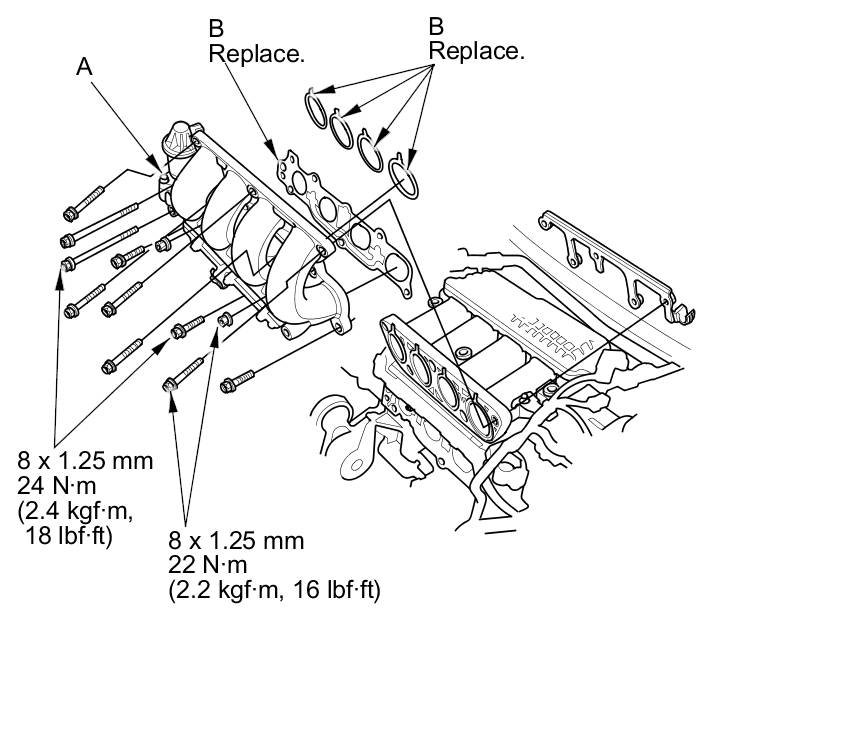

Intake manifold (A) with new gaskets (B).

Tighten the bolts and nuts in a crisscross pattern in three steps, beginning with the inner bolt.
