Front Passengers Power Window Switch Removal And Installation

Front Passenger's Power Window Switch Removal and Installation

Removal

1. Front Door Power Window Switch Panel - Passenger's Side

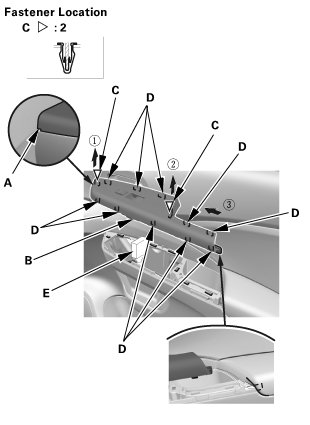

1. Carefully pry out on the notch (A) in the power window switch panel (B) with the appropriate trim tool to detach the clips (C) and the hooks (D). Disconnect the connector (E), then remove the power window switch panel.

2. Front Door Power Window Switch - Passenger's Side

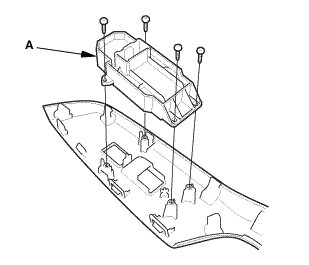

1. Remove the front passenger's power window switch (A).

Installation

1. Front Door Power Window Switch - Passenger's Side





1. Install the front passenger's power window switch (A).

2. Front Door Power Window Switch Panel - Passenger's Side

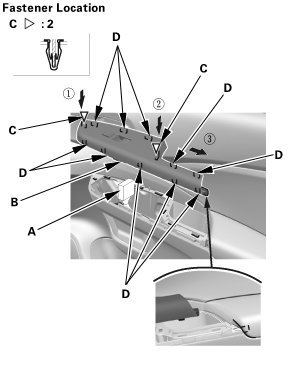

1. Connect the connector (A), then install the power window switch panel (B). Make sure the clips (C) and the hooks (D) snap into place securely.
