KX Mexico Models

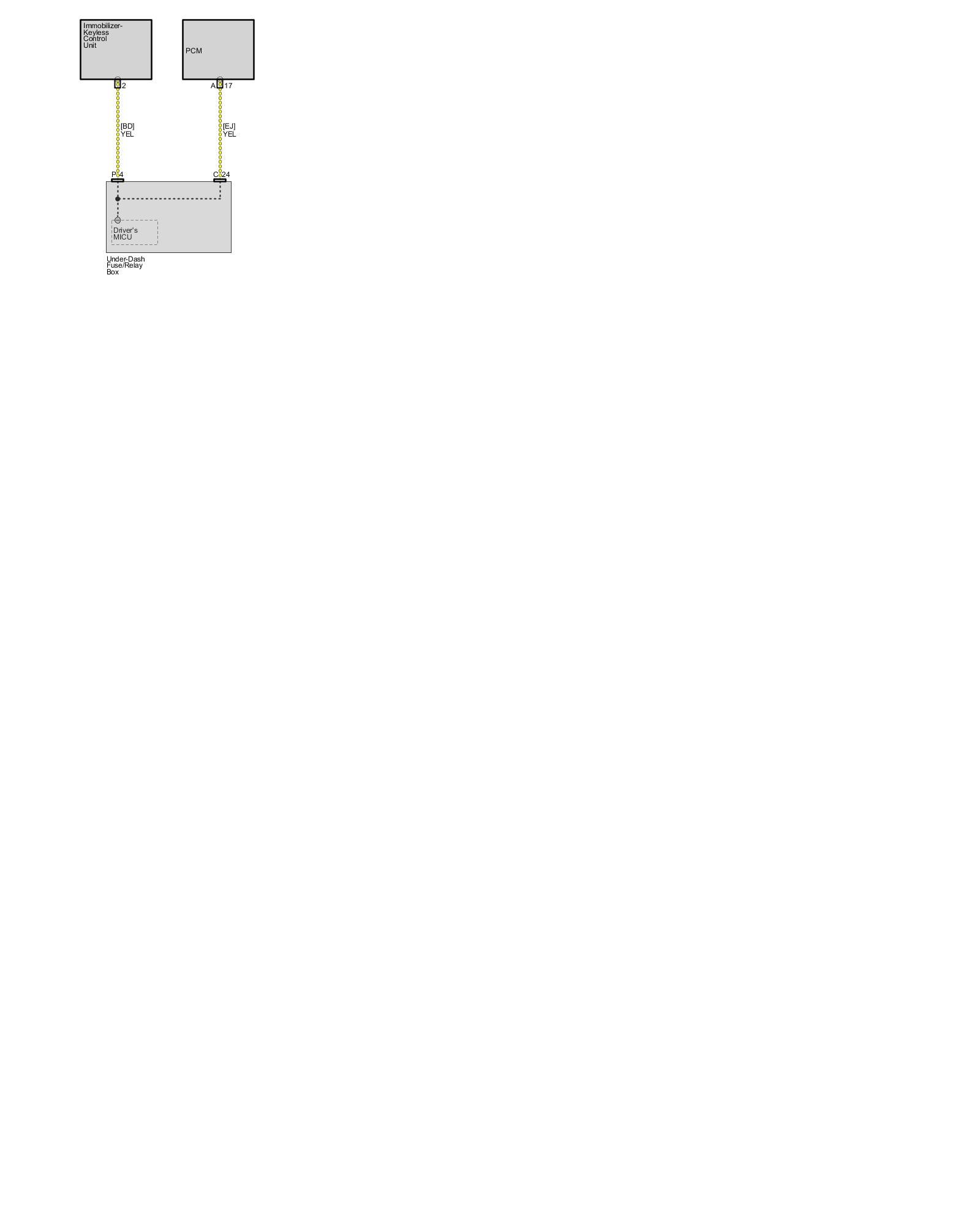

Body - Multiplex Integrated Control System - S-NET Communication Line

KX Mexico Emissions, 5-door LX, RM3(2WD), AT Transmission
KX Mexico Emissions, 5-door EX, RM3(2WD), AT Transmission
KX Mexico Emissions, 5-door EX-L, RM4(4WD), AT Transmission
