Drive Belt: Service and Repair

Drive Belt Removal and Installation

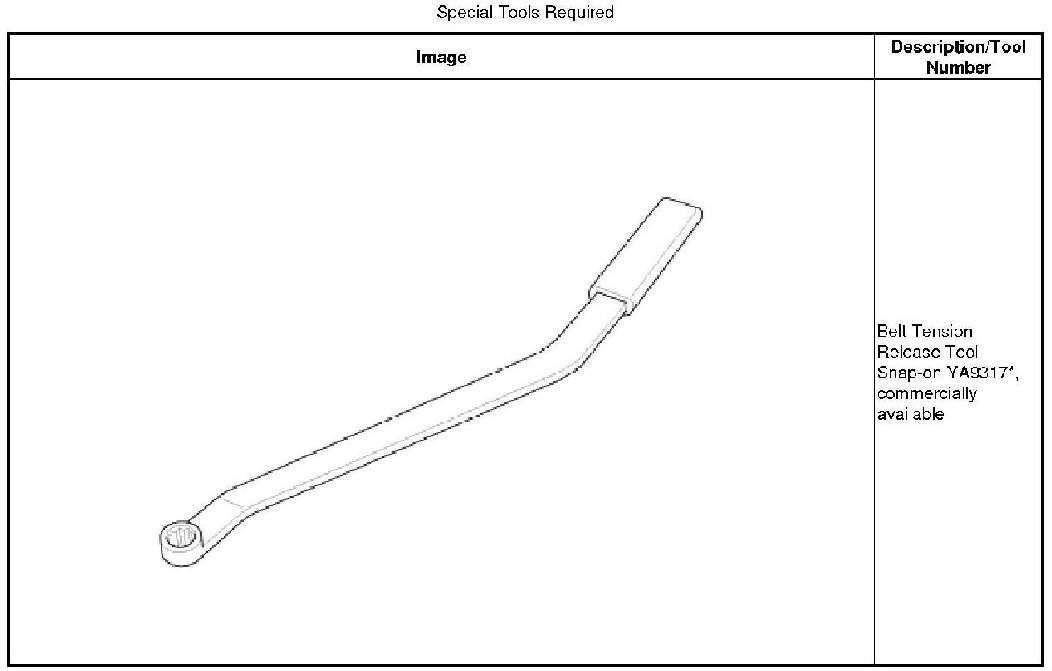

*Available through the Honda Tool and Equipment Program 888-424-6857

Removal

1. Drive Belt

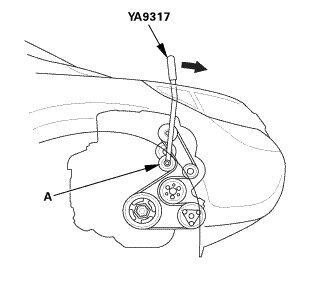

1. Move the auto-tensioner (A) using the belt tension release tool in the direction of the arrow to relieve tension from the drive belt, then remove the drive belt.

Installation

1. Drive Belt





1. Install the drive belt.
