Climate Control System Component Location Index




HVAC

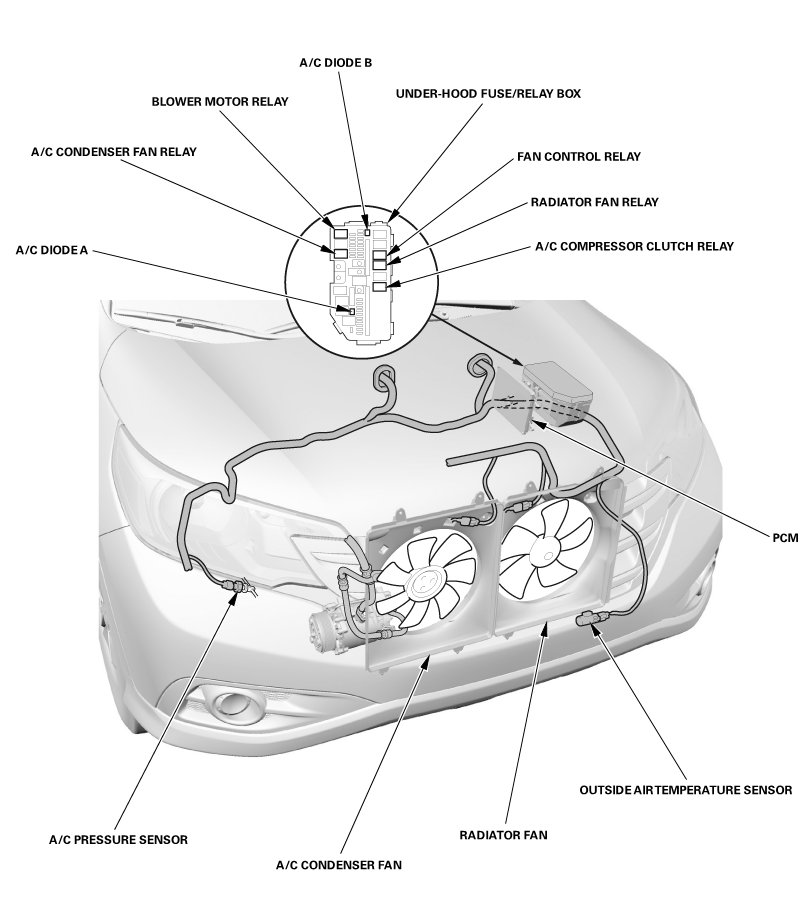

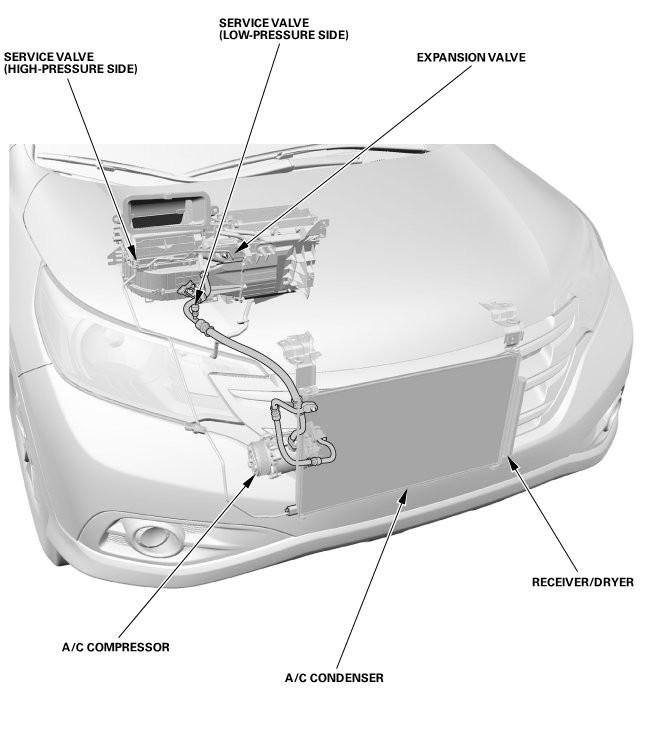

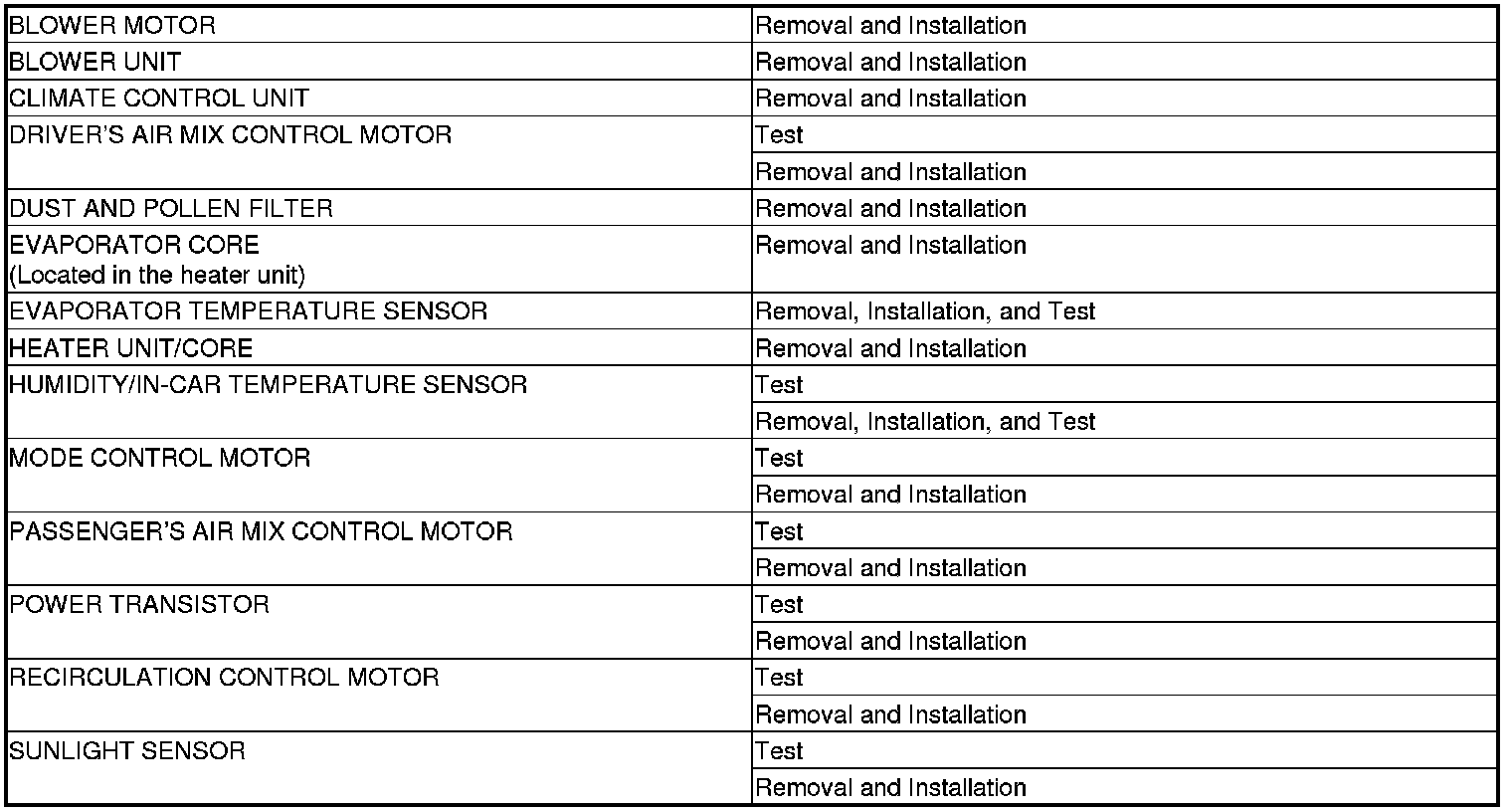

Climate Control System Component Location Index
