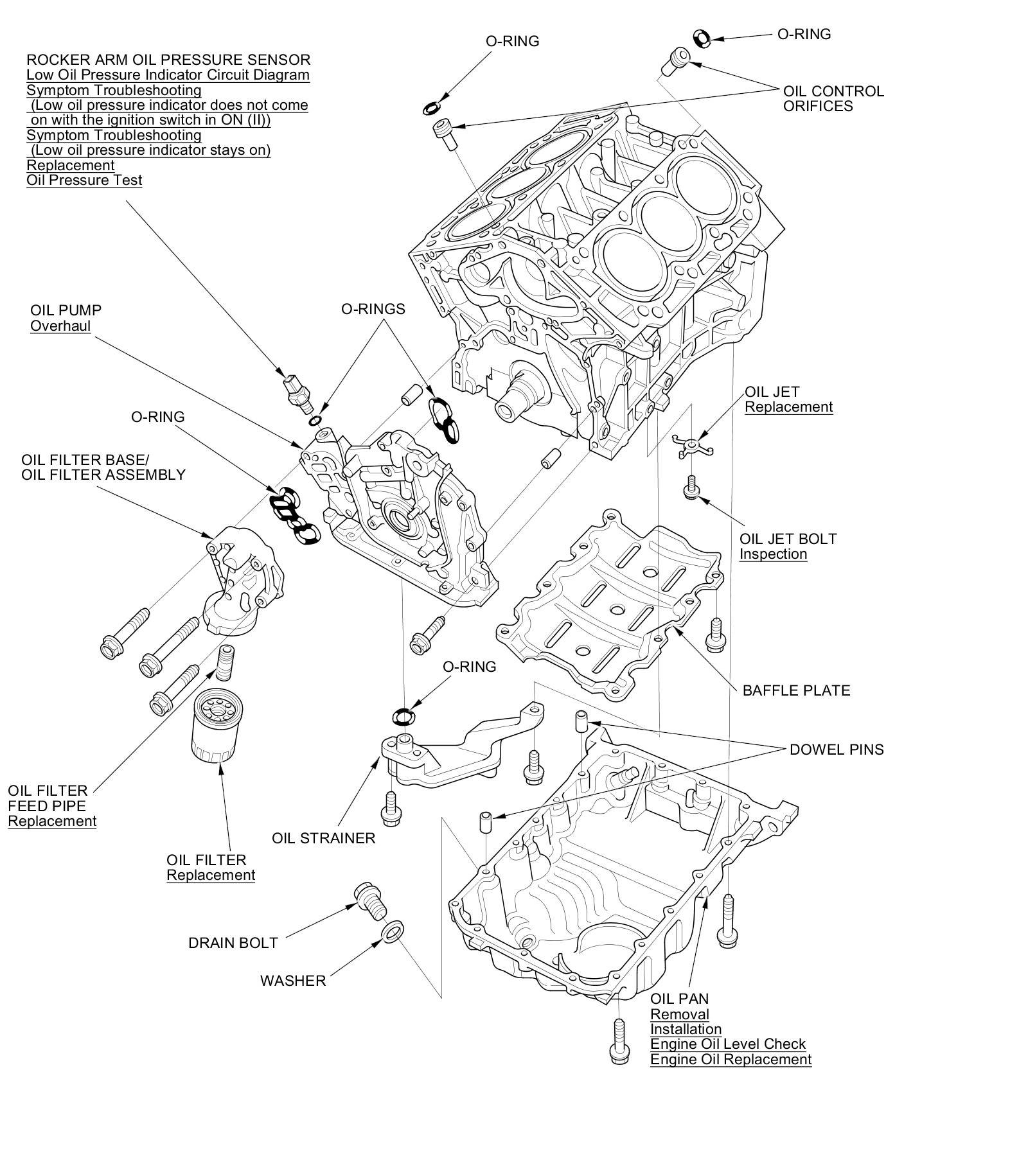

Engine Lubrication System Component Location Index




Engine Lubrication Component Location Index

J35Z2 engine
