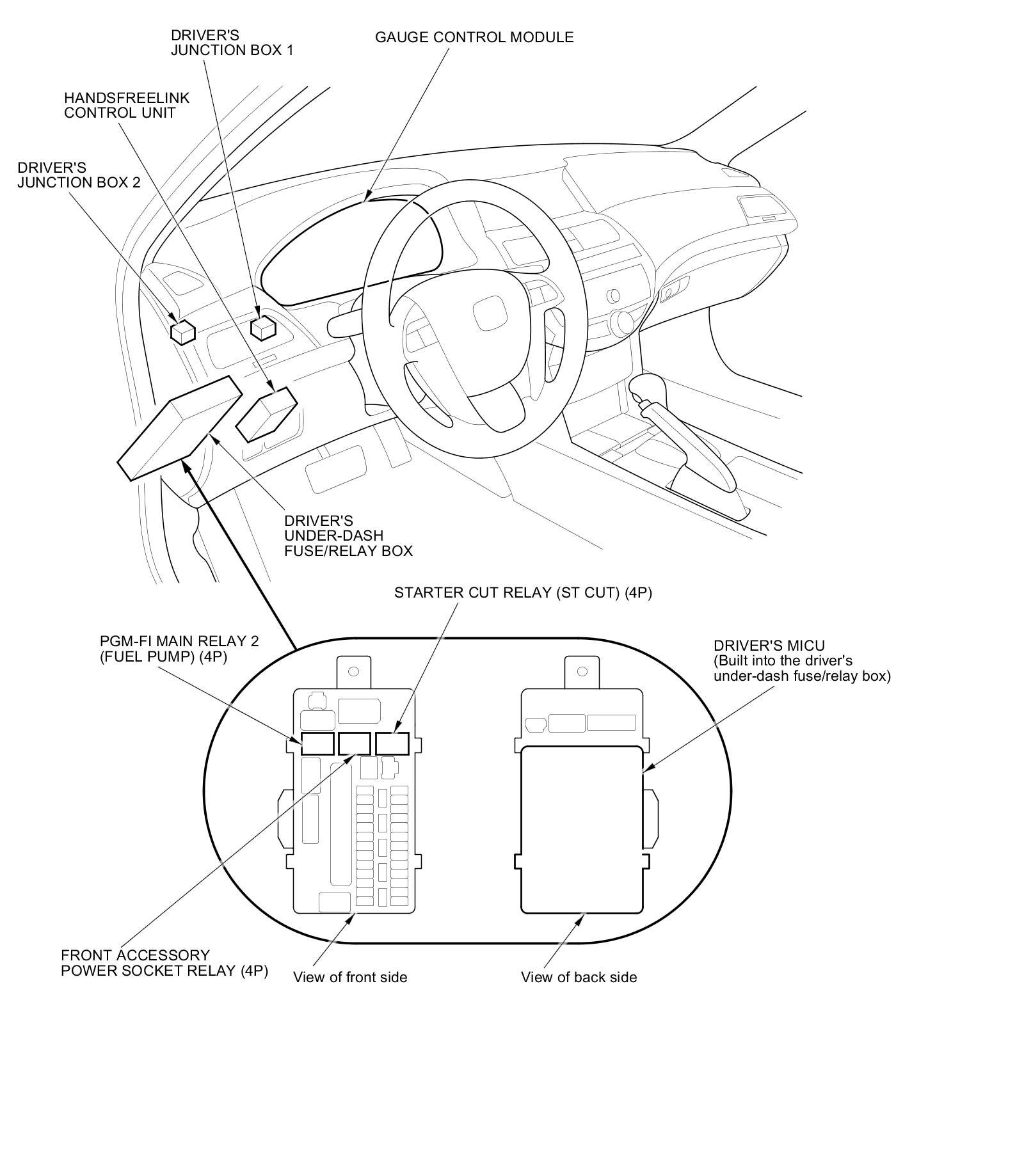

Relay And Control Unit Locations - Dashboard
Relay And Control Unit Locations - Dashboard
Relay and Control Unit Locations - Dashboard

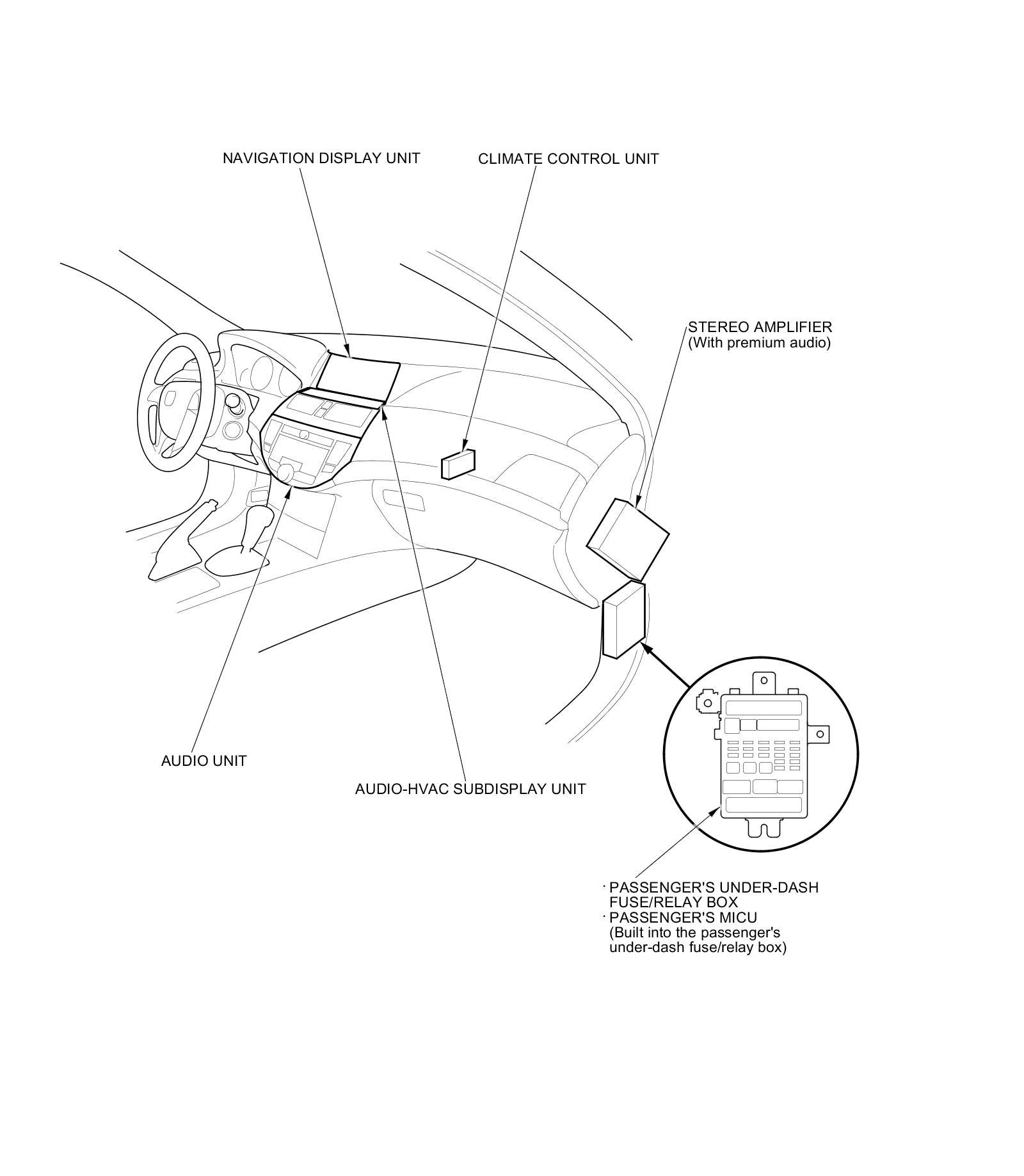

With Navigation

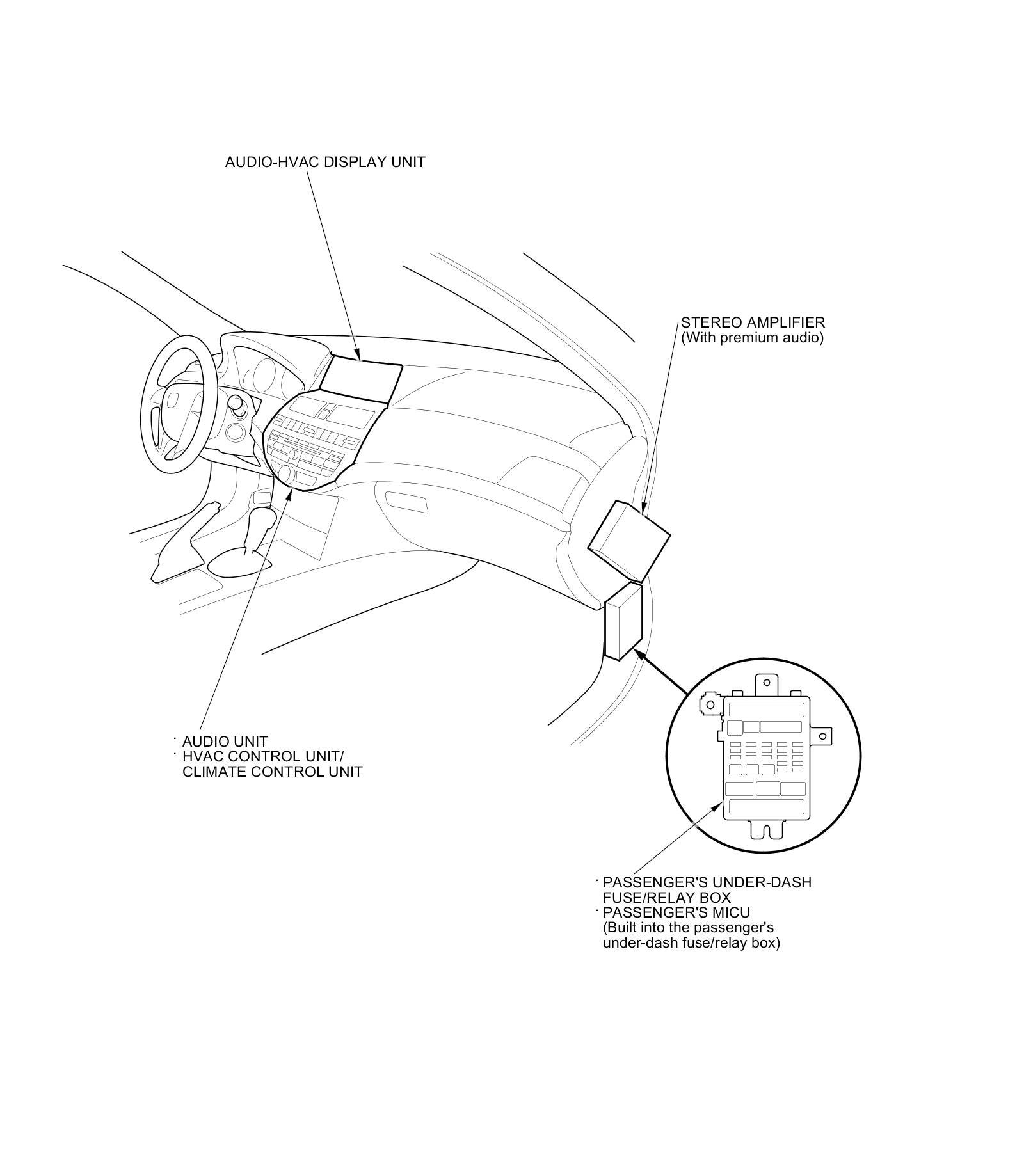

Without Navigation
