Home >> Honda >> 2012 >> Accord L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Window Switch >> Power Window Master Switch Connector View

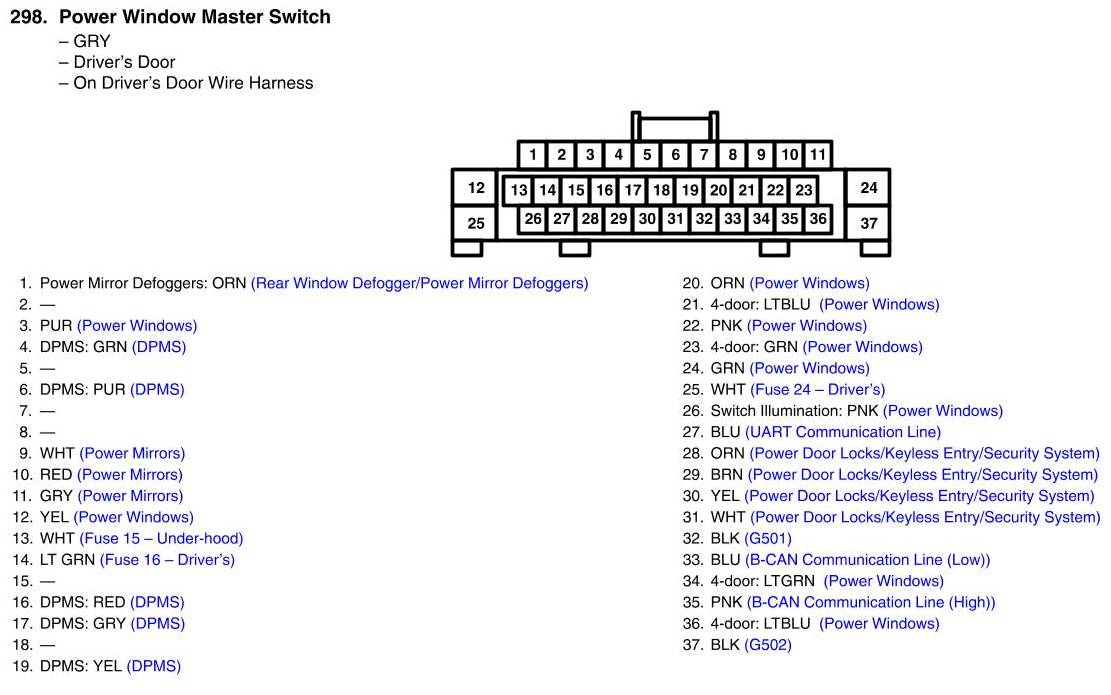

Power Window Master Switch Connector View
