LEMON Manuals
: Even more car manuals for everyone
Home
>>
Honda
>>
2012
>>
Accord L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuse Block
>>

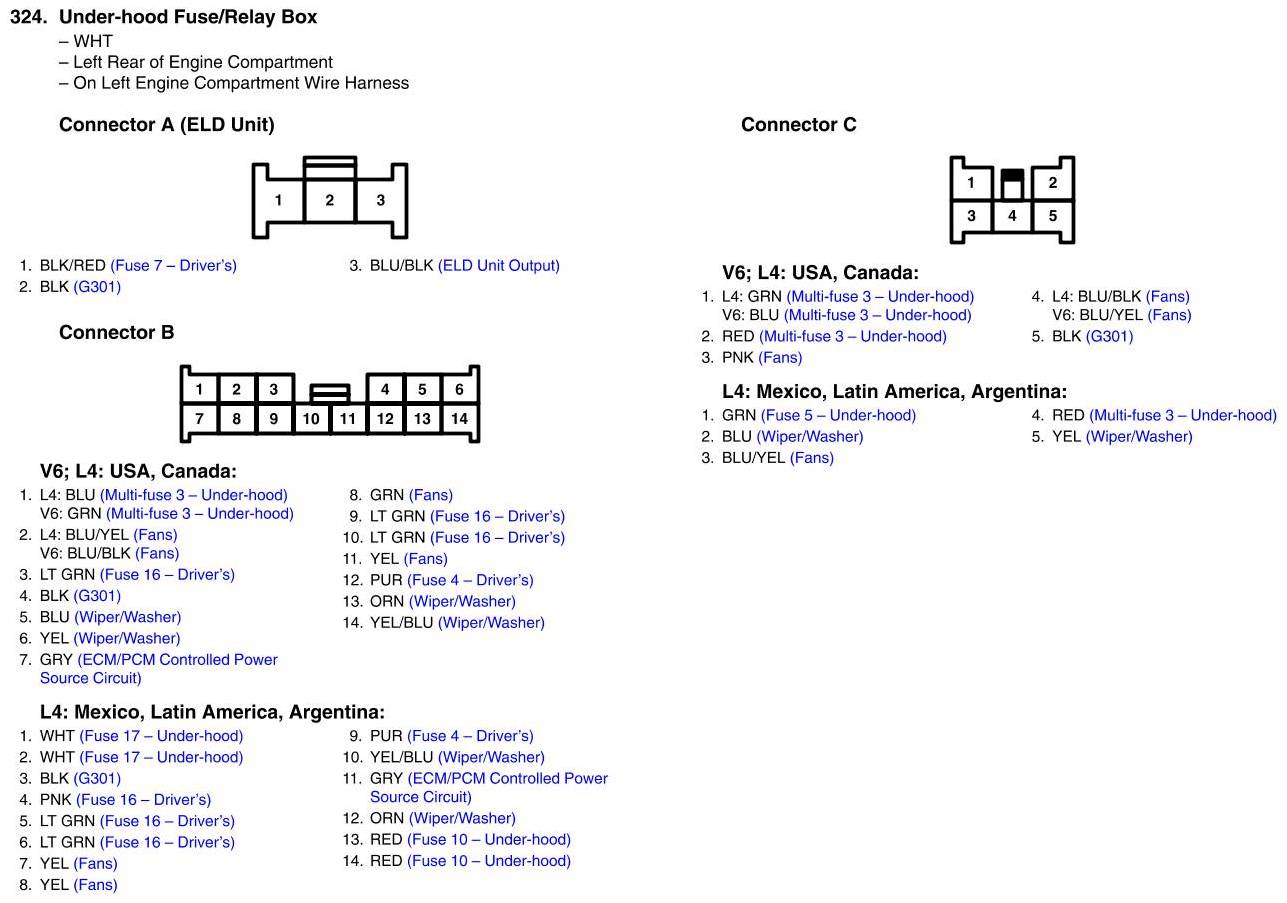

Under-Hood Fuse/Relay Box Connector View
Under-Hood Fuse/Relay Box Connector View
