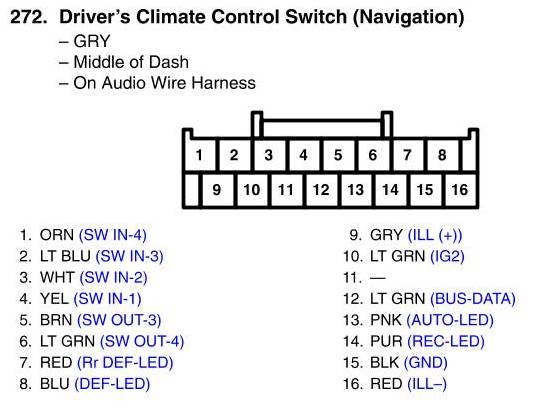

Driver's Climate Control Switch Connector View (Navigation)
Driver's Climate Control Switch Connector View (Navigation)
