Home >> Honda >> 2012 >> Accord L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Assembly, HVAC >> Audio-HVAC Sub-Display Unit Connector View

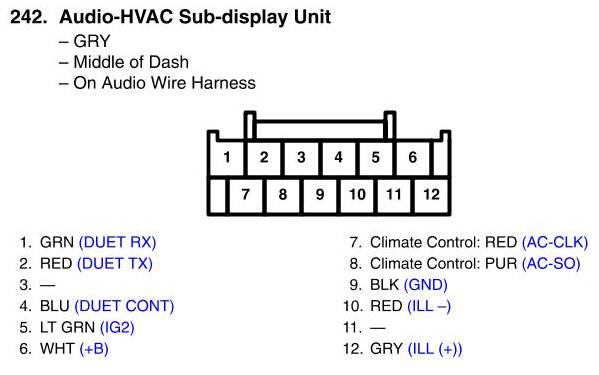

Audio-HVAC Sub-Display Unit Connector View
