Insight L4-1.3L Hybrid
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Windows
>>
Power Window Switch
>>

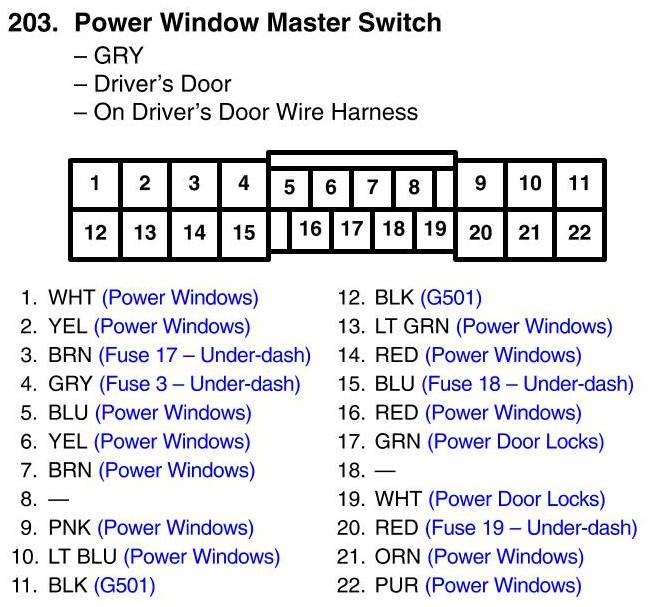

Power Window Master Switch Connector View
Power Window Master Switch Connector View
