Home
>>
Honda
>>
2011
>>
Insight L4-1.3L Hybrid
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Windows
>>
Power Window Switch
>>

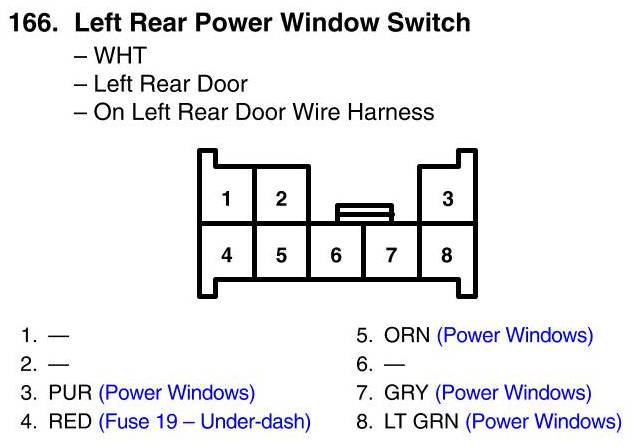

Left Rear Power Window Switch Connector View
Left Rear Power Window Switch Connector View
