Home >> Honda >> 2011 >> Insight L4-1.3L Hybrid >> Repair and Diagnosis >> Diagrams >> Connector Views >> Trunk / Liftgate Switch >> Hatch Latch Switch Connector View

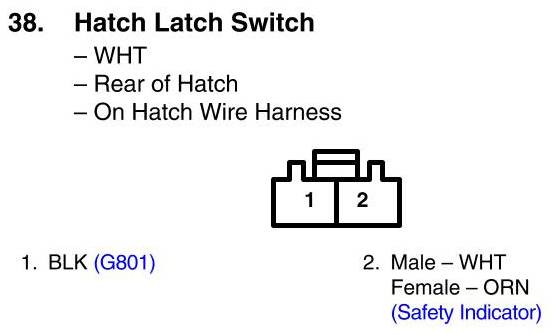

Hatch Latch Switch Connector View
