Home >> Honda >> 2011 >> Insight L4-1.3L Hybrid >> Repair and Diagnosis >> Diagrams >> Connector Views >> Steering Angle Sensor >> Steering Angle Sensor Connector View (VSA)

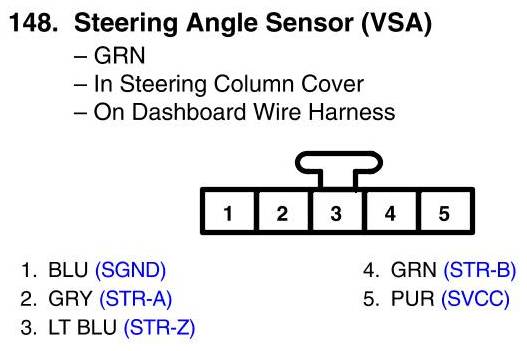

Steering Angle Sensor Connector View (VSA)
