LEMON Manuals
: Even more car manuals for everyone
Home
>>
Honda
>>
2011
>>
Fit L4-1.5L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Relay Box
>>
Application and ID
>>

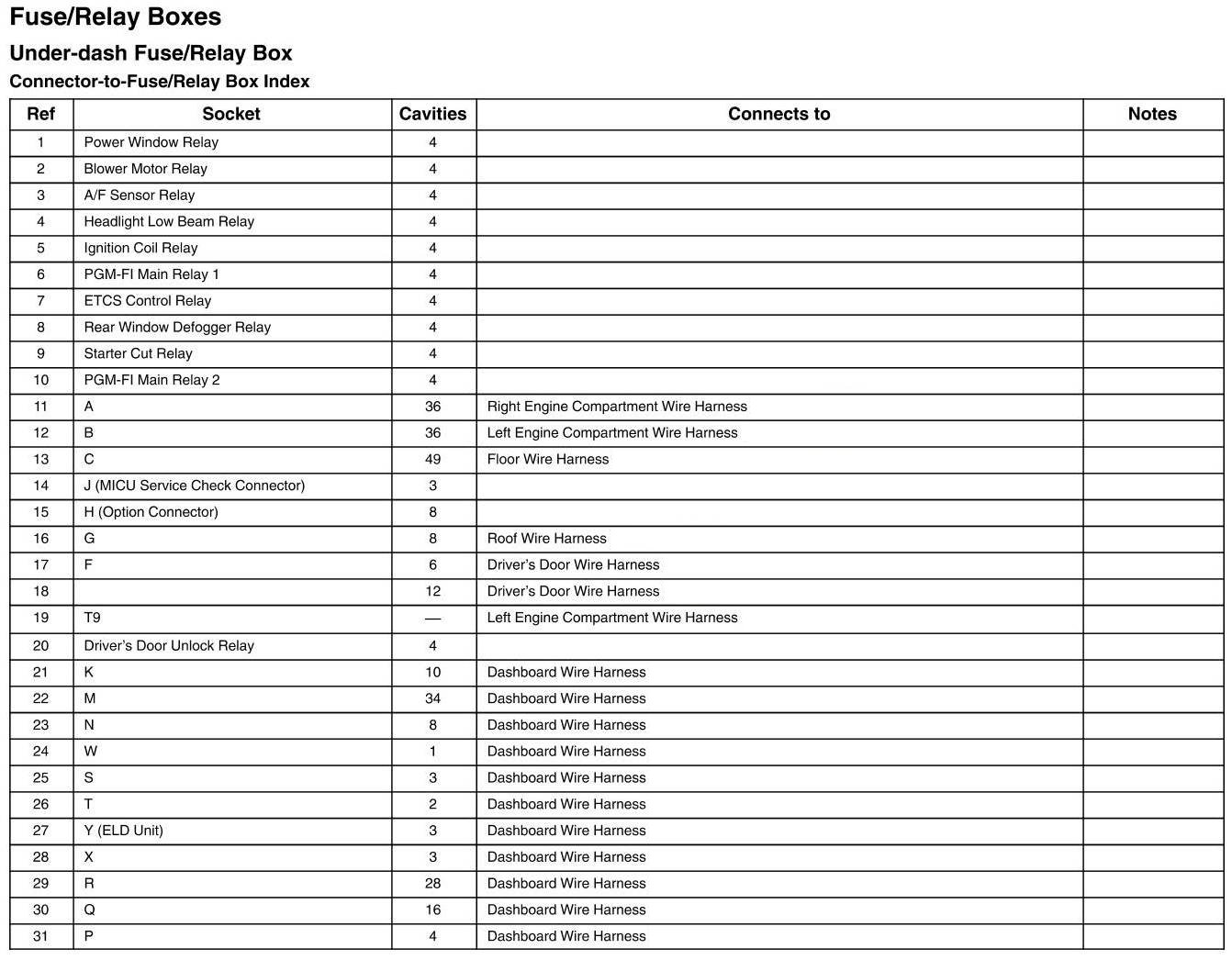

Under-Dash Fuse/Relay Box - Connector-To-Fuse/Relay Box Index
Under-Dash Fuse/Relay Box - Connector-To-Fuse/Relay Box Index
