Home >> Honda >> 2011 >> Fit L4-1.5L >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse >> Locations >> Battery Terminal Fuse Box - Fuse-To-Components Index

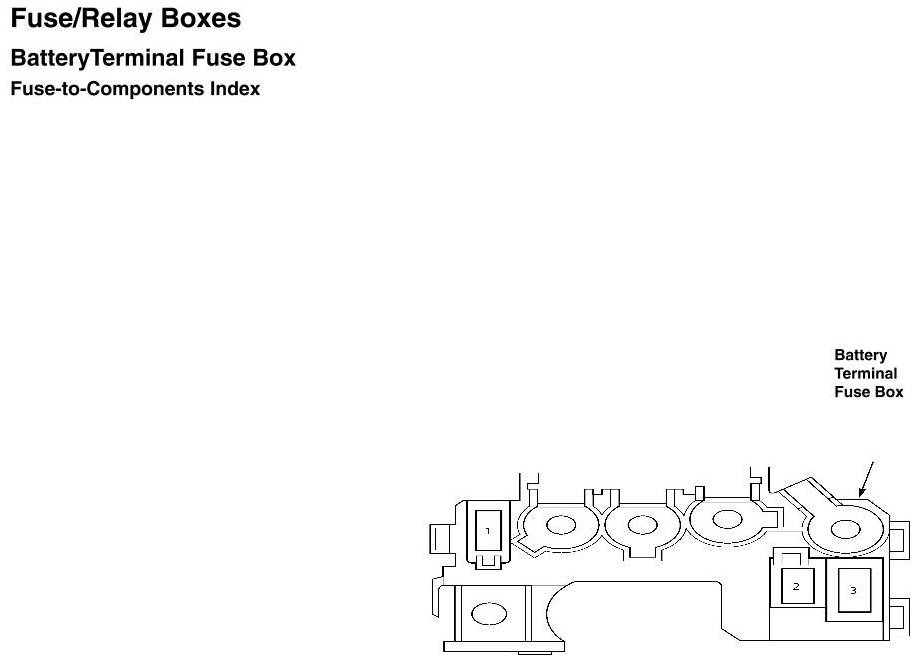

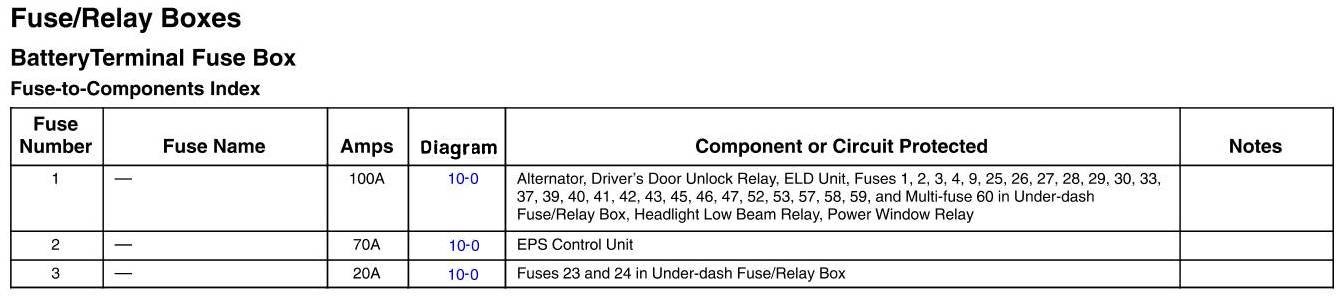

Battery Terminal Fuse Box - Fuse-To-Components Index
