Home >> Honda >> 2011 >> Fit L4-1.5L >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse Block >> Locations >> Component Locations >> Under-Dash Fuse/Relay Box - Fuse-To-Components Index

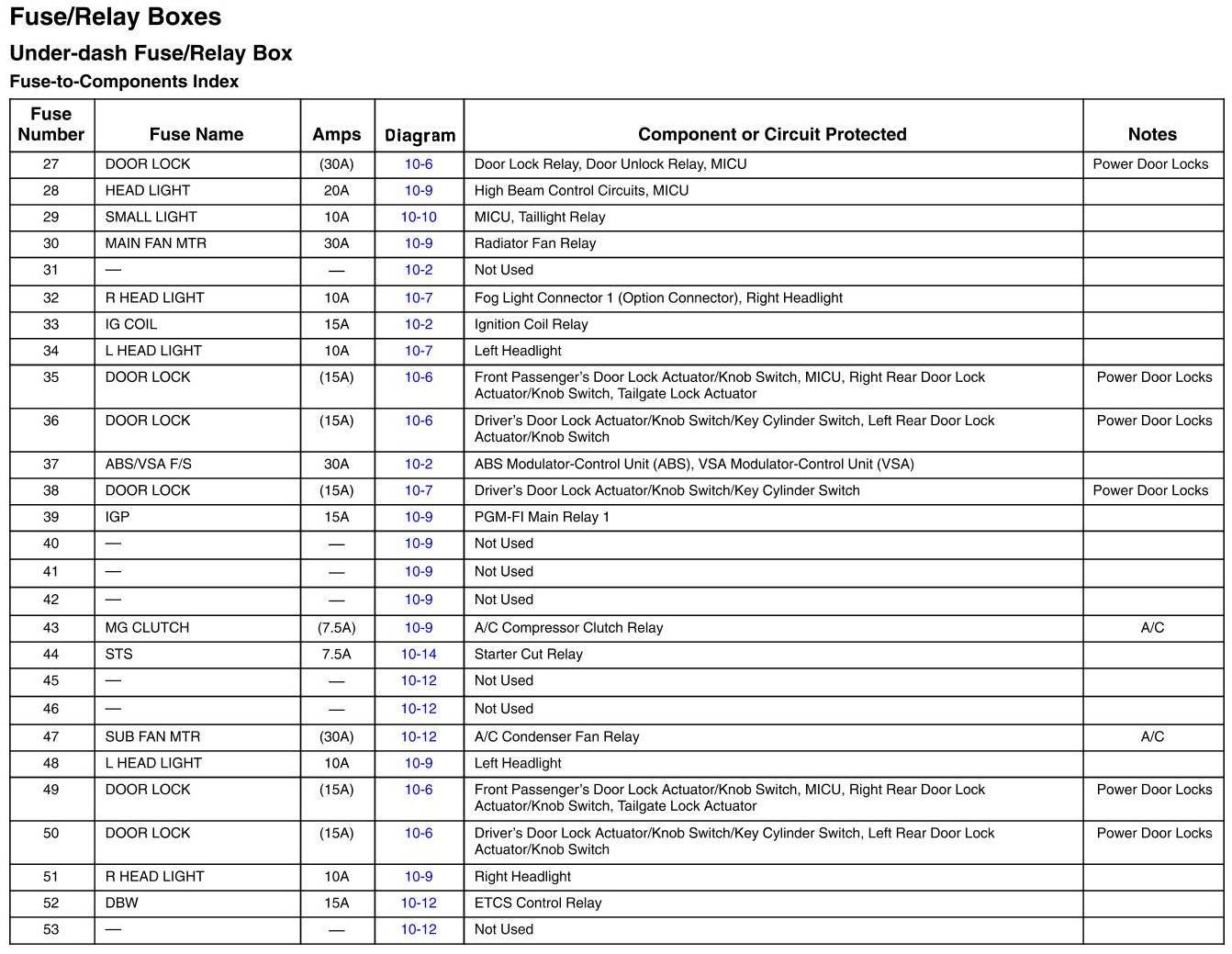

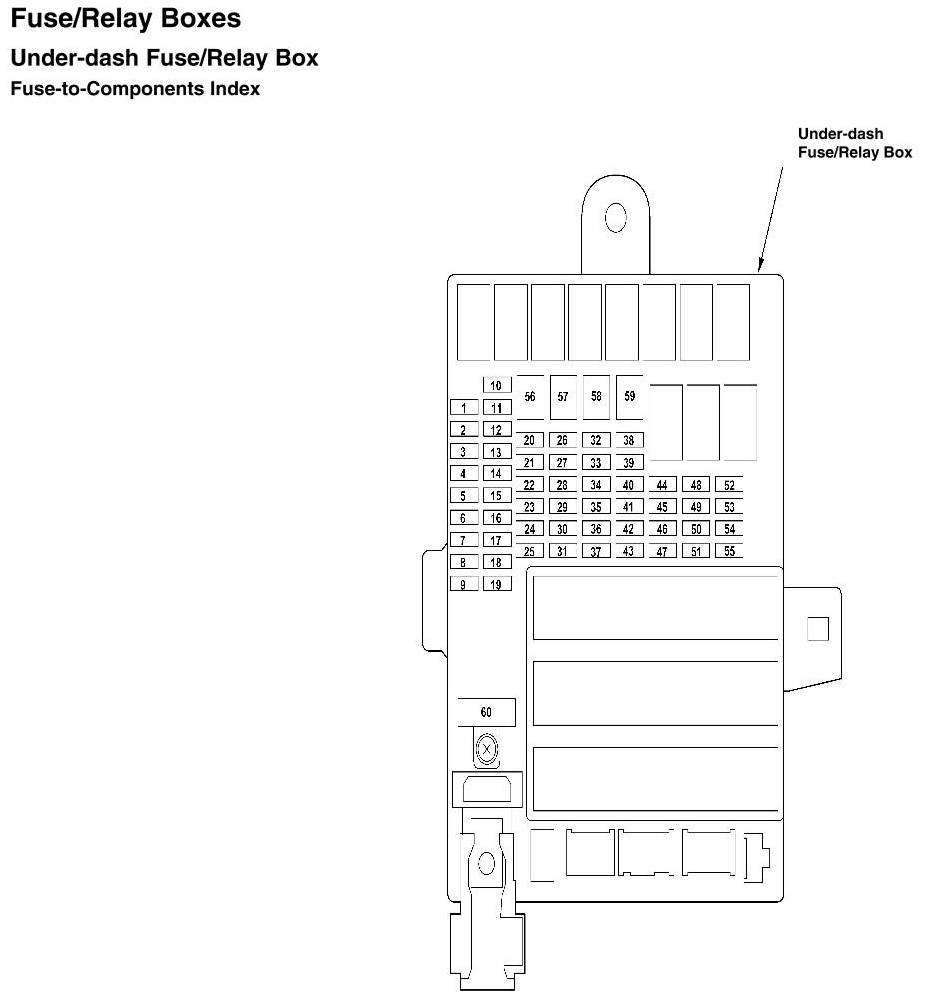

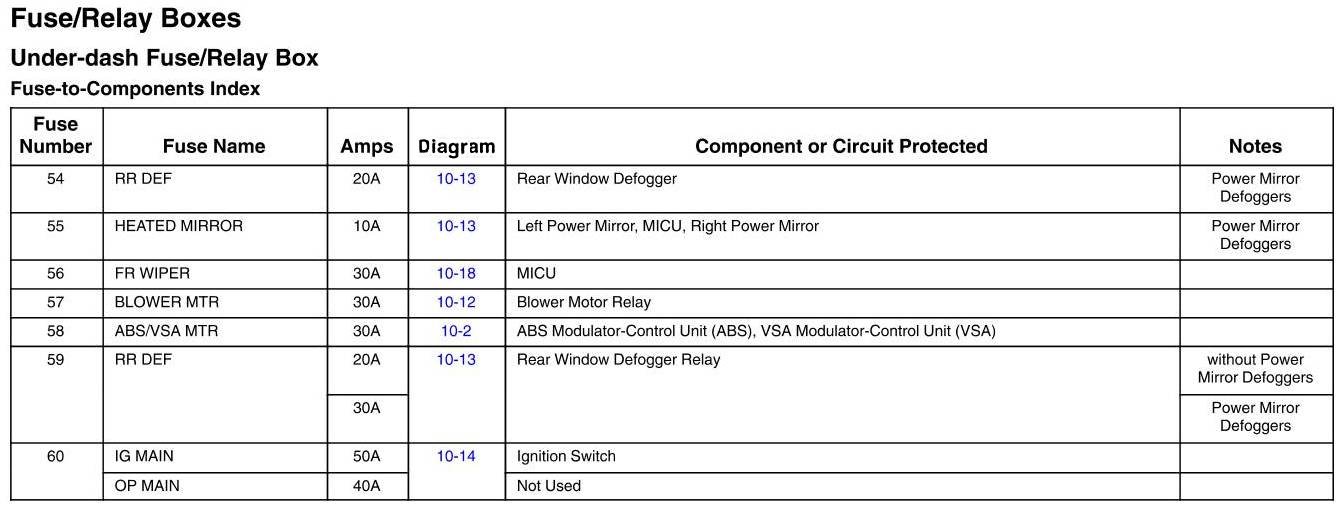

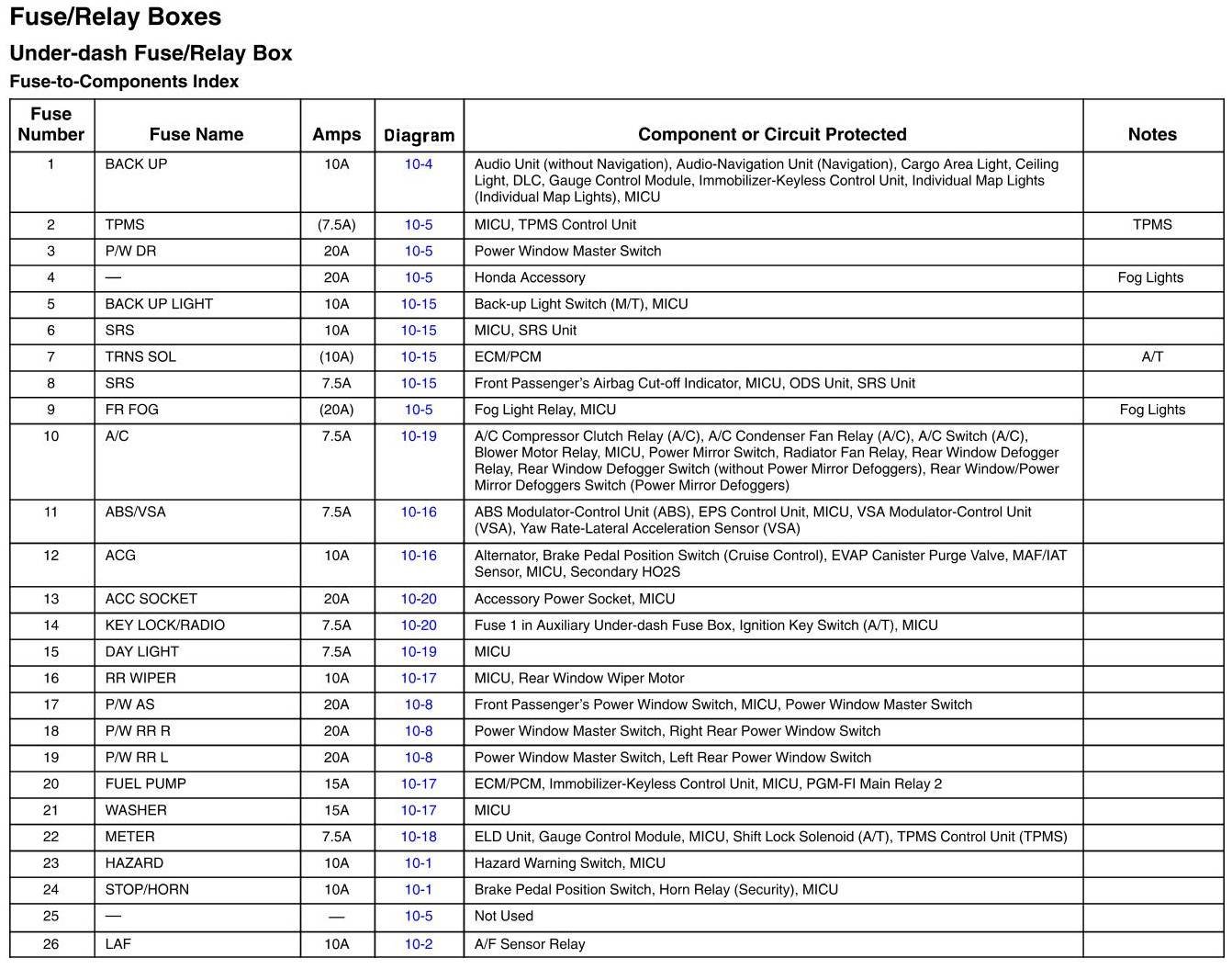

Under-Dash Fuse/Relay Box - Fuse-To-Components Index
