Component Location Index

WARNING: This page is about a different car, the 2013 Honda Fit and 2012 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

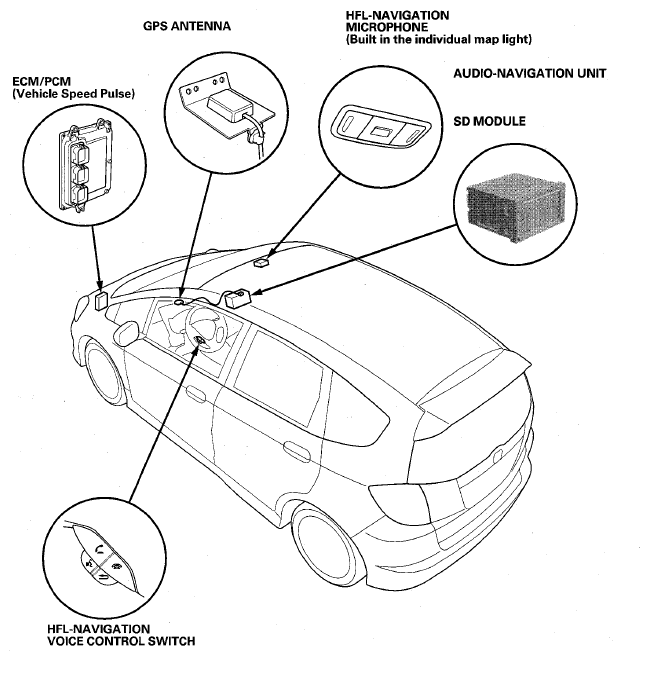

Fig 1: Identifying Navigation System Components Location
G08083147Courtesy of AMERICAN HONDA MOTOR CO., INC.
