Fuse To Components Index




Fuse to Components Index

Under-Hood Fuse/Relay Box

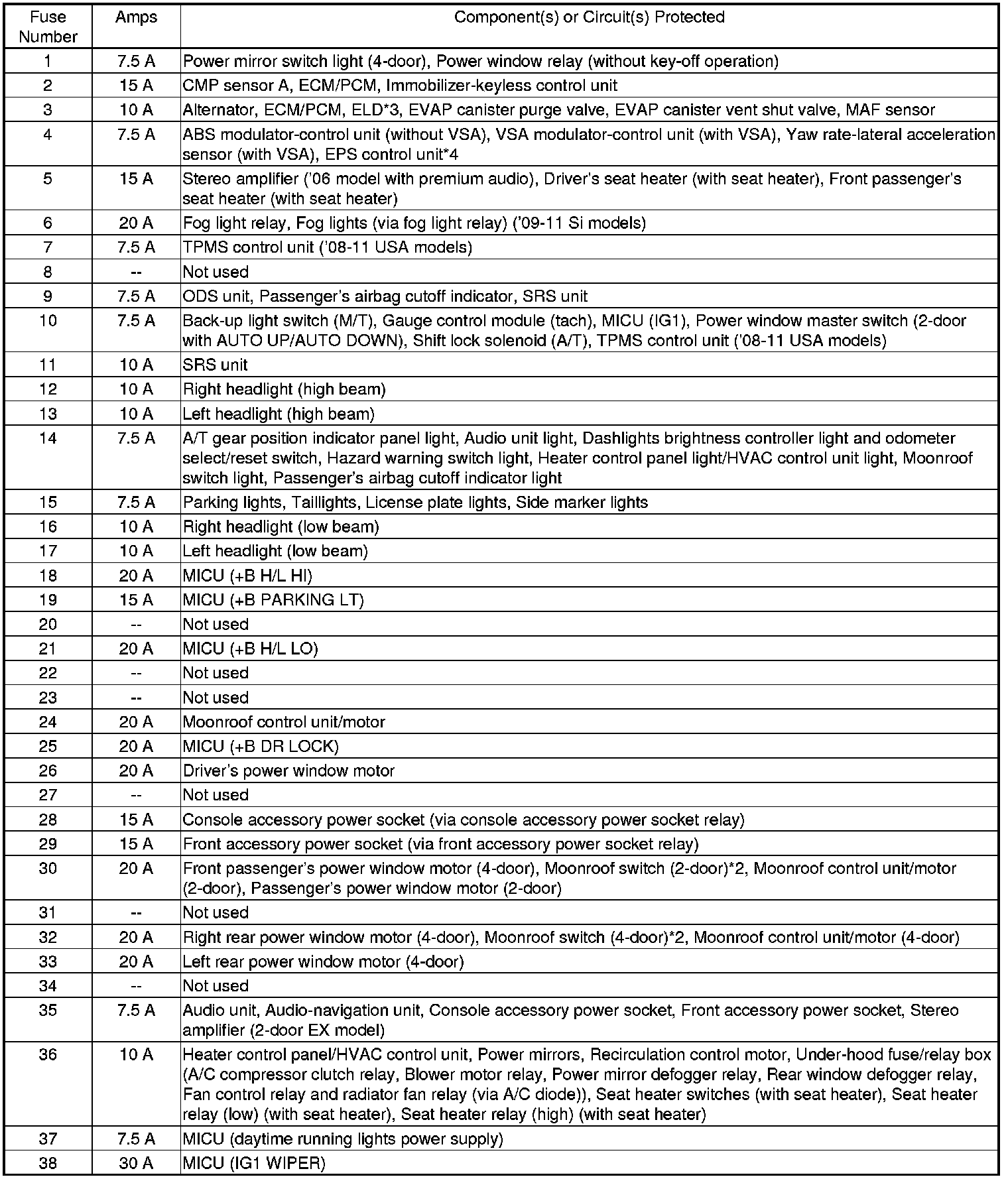

Under-Dash Fuse/Relay Box
