Home >> Honda >> 2011 >> Civic L4-1.8L CNG >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Fuel Injector Driver Module (CNG) >> Diagrams >> Injector Control Module Connector View (GX)

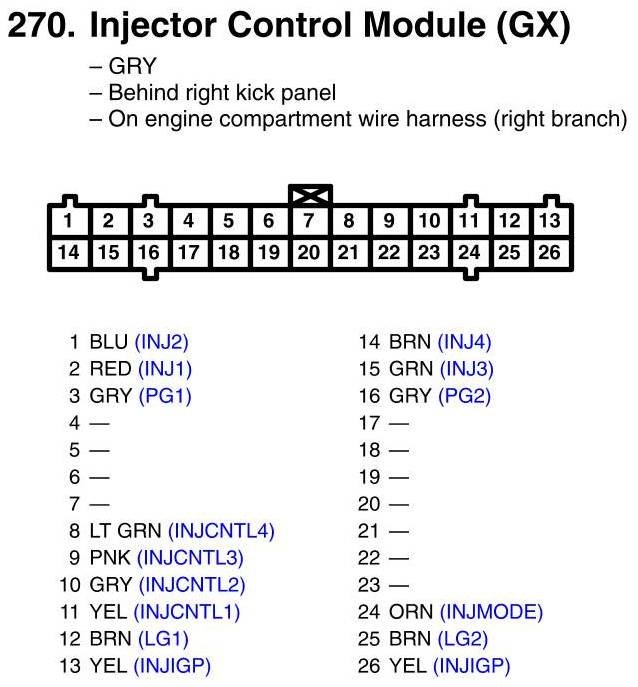

Injector Control Module Connector View (GX)
