Home >> Honda >> 2011 >> Civic L4-1.8L CNG >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Air Flow Meter/Sensor >> Diagrams

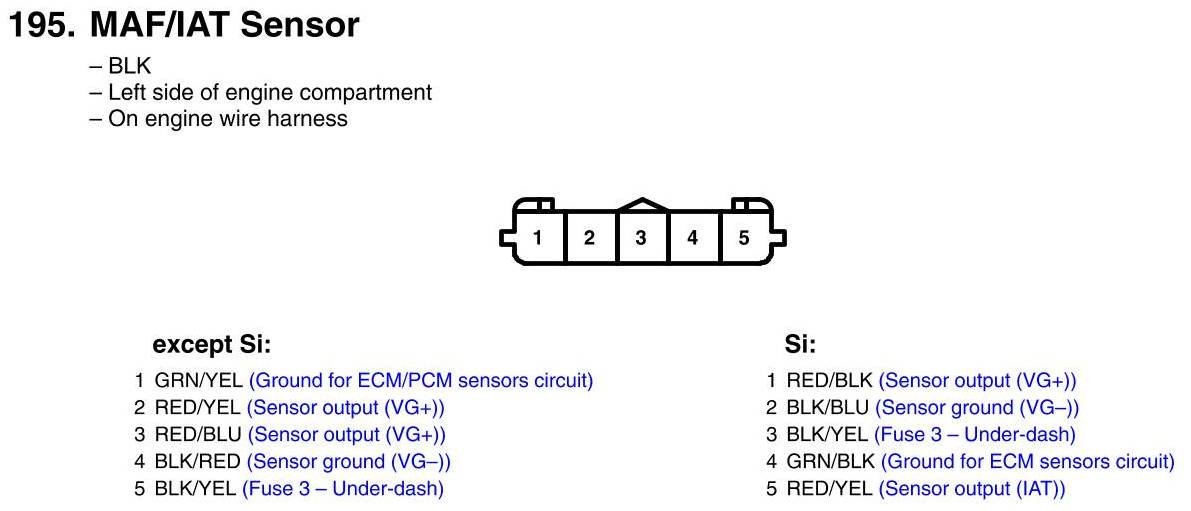

Air Flow Meter/Sensor: Diagrams
