Instrument Panel Control Module
>>

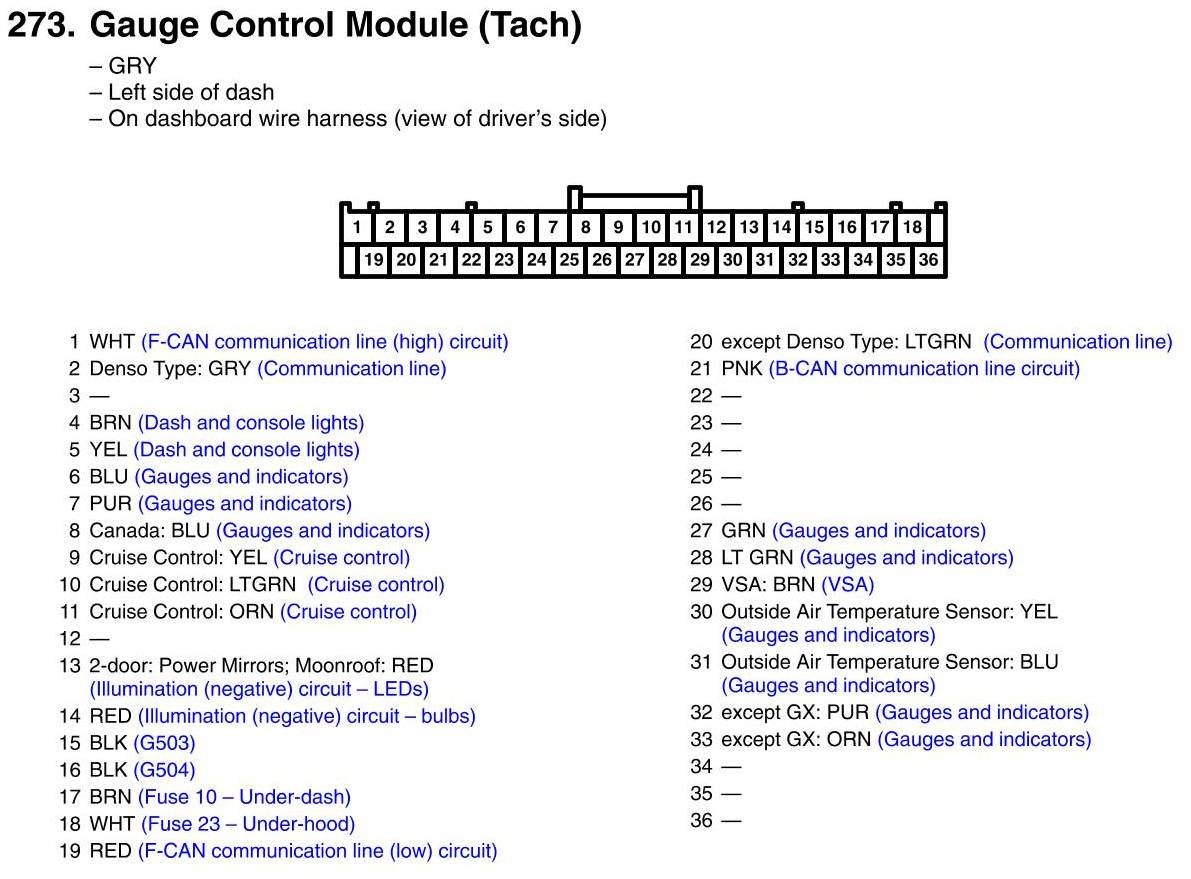

Gauge Control Module (Tach) Connector View
Gauge Control Module (Tach) Connector View
