Home >> Honda >> 2011 >> Civic L4-1.3L Hybrid >> Repair and Diagnosis >> Diagrams >> Connector Views >> Steering Angle Sensor >> Motor Angle Sensor Connector View

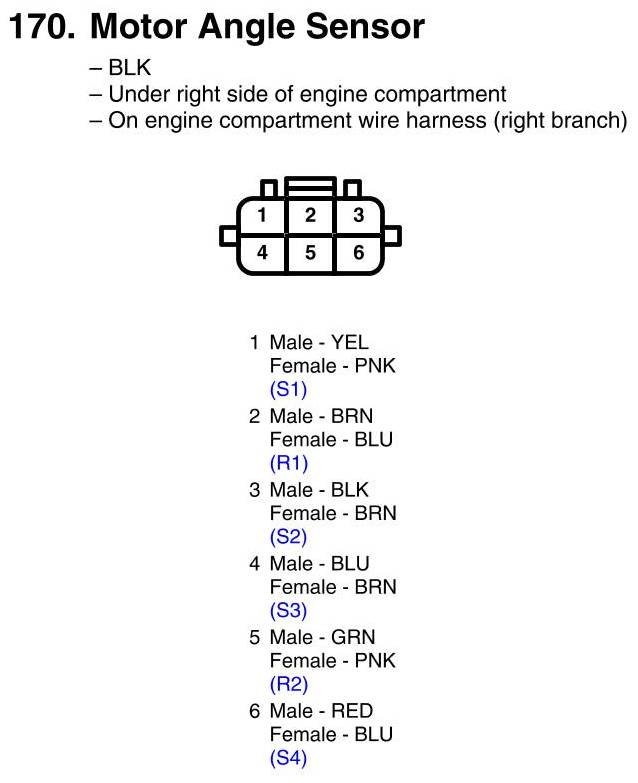

Motor Angle Sensor Connector View
