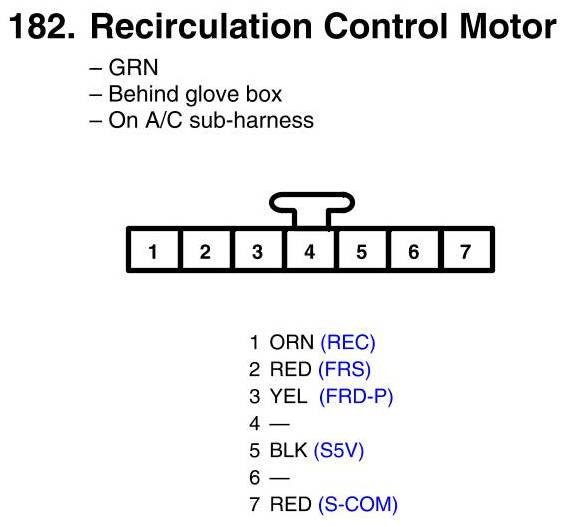

View 182 - Recirculation Control Motor Connector View
View 182 - Recirculation Control Motor Connector View
