Home >> Honda >> 2011 >> CR-Z L4-1.5L Hybrid >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Timing Cover

Timing Cover

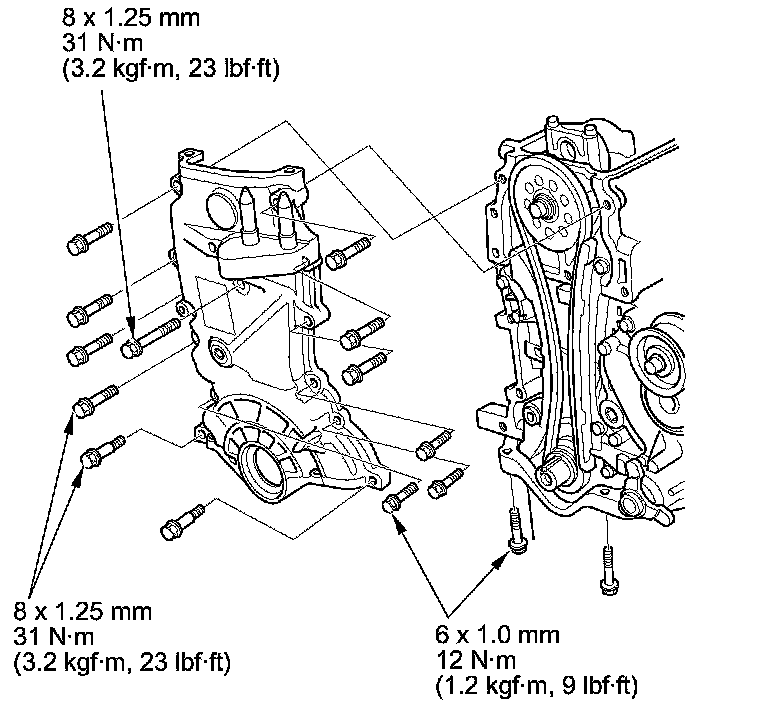

Tighten the chain case mounting bolts
