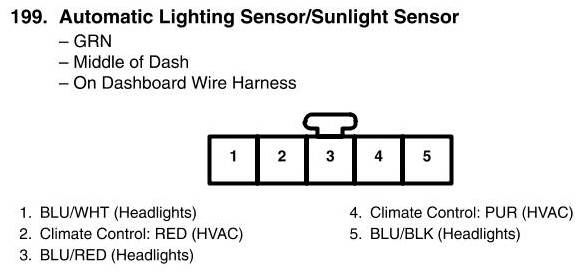

View 199 - Automatic Lighting Sensor/Sunlight Sensor Connector View
View 199 - Automatic Lighting Sensor/Sunlight Sensor Connector View
