Exhaust Gas Recirculation: Locations




EGR System Component Location Index

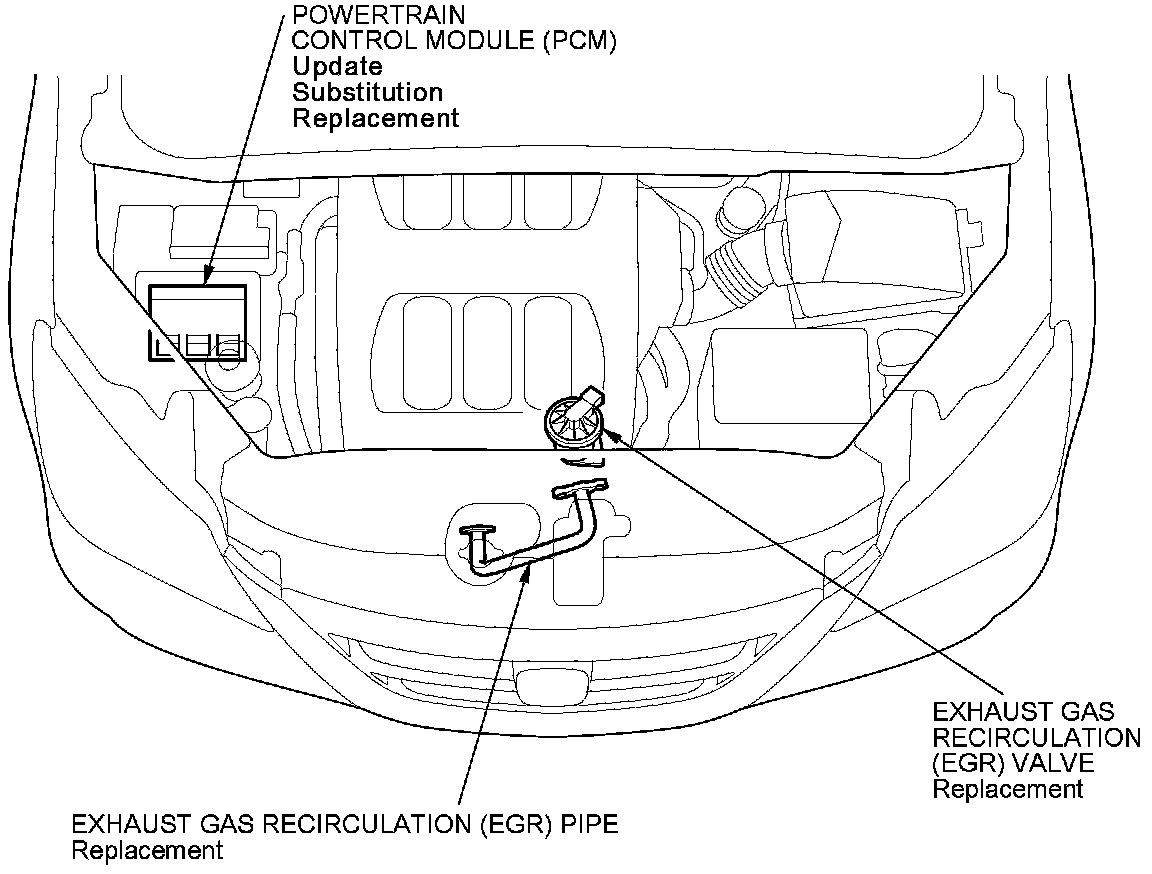

J35A6 engine, J35A7 engine ('07 model)

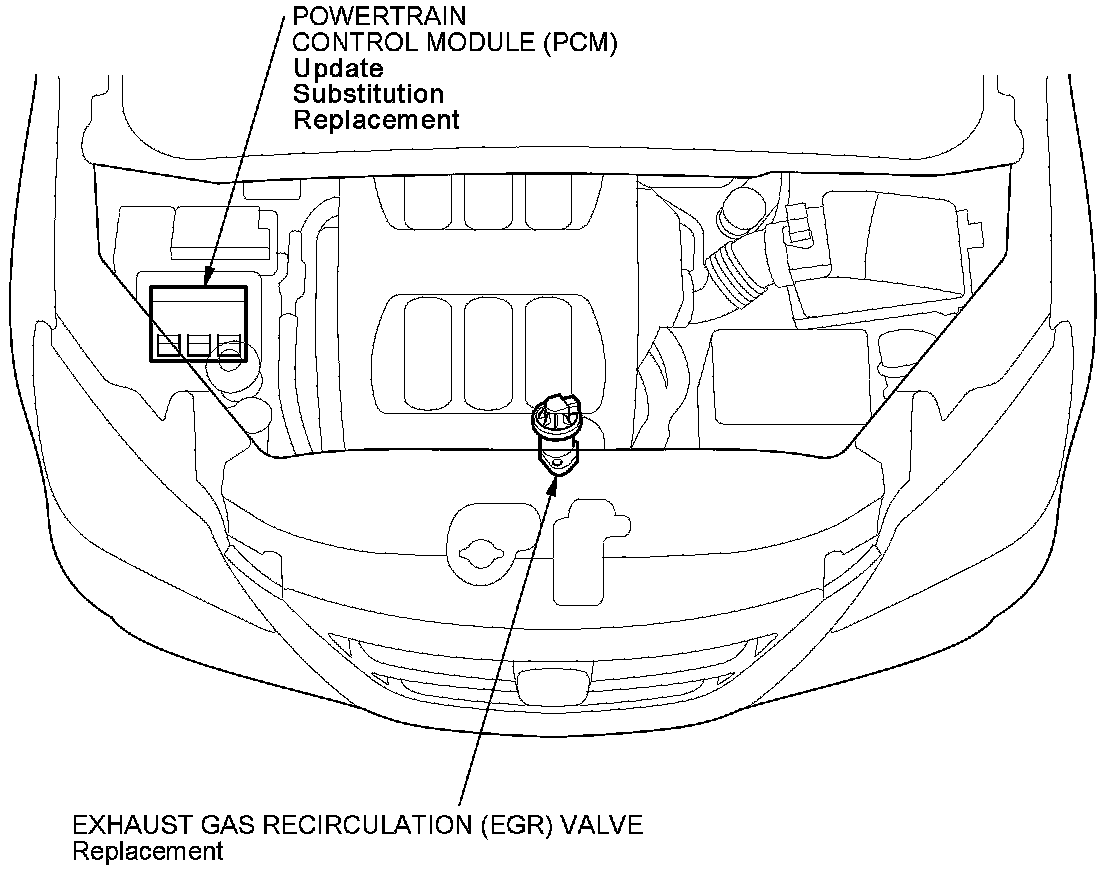

J35A7 engine ('08-10 models)
