Oil Pump Overhaul
>>
Exploded View
Exploded View

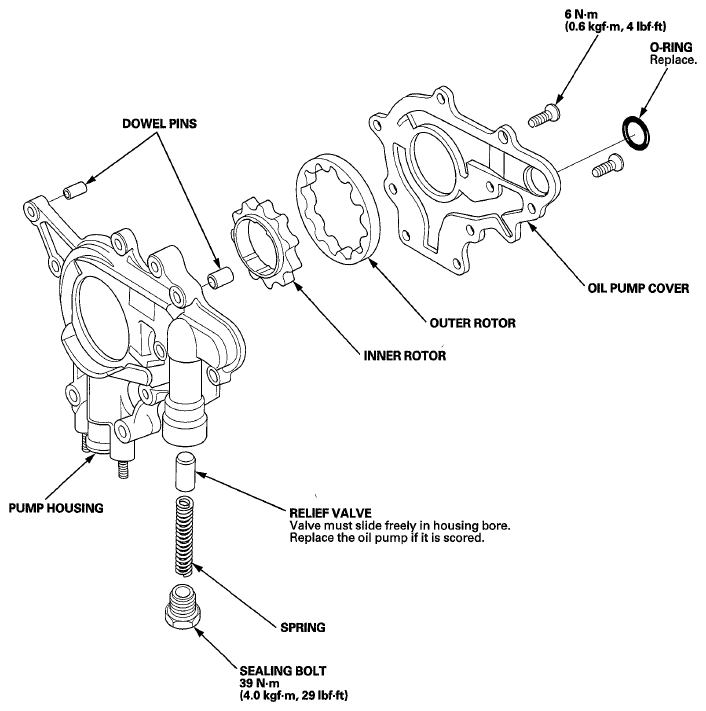

Fig 1: Exploded View Of Oil Pump With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Special Tools Required
Support Eyelet 07AAK-SNAA600
Engine Support Hanger, A and Reds AAR-T1256*
* Available through the Honda Tool and Equipment Program 888-424-6857
