Home >> Honda >> 2010 >> Insight L4-1.3L Hybrid >> Repair and Diagnosis >> Diagrams >> Connector Views >> Voice Activation Module >> HandsFreeLink Control Unit Connector View (Navigation)

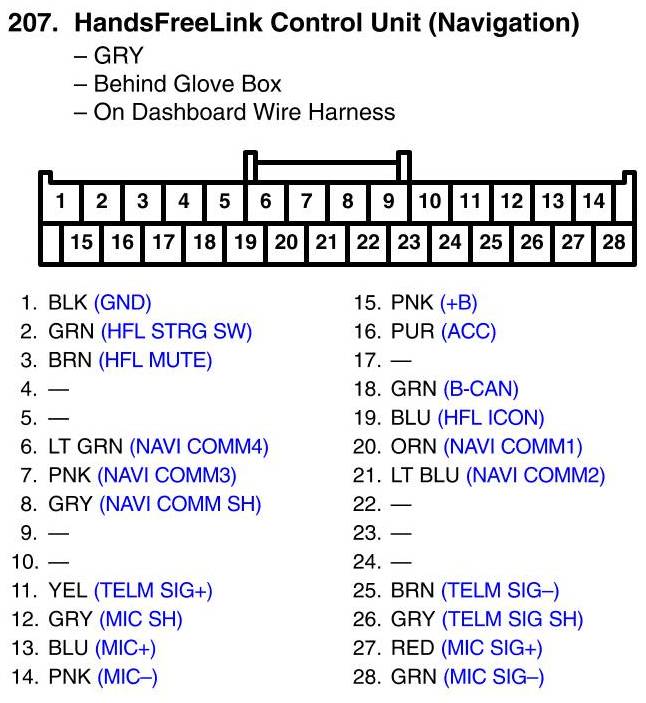

HandsFreeLink Control Unit Connector View (Navigation)
