Home
>>
Honda
>>
2010
>>
Insight L4-1.3L Hybrid
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

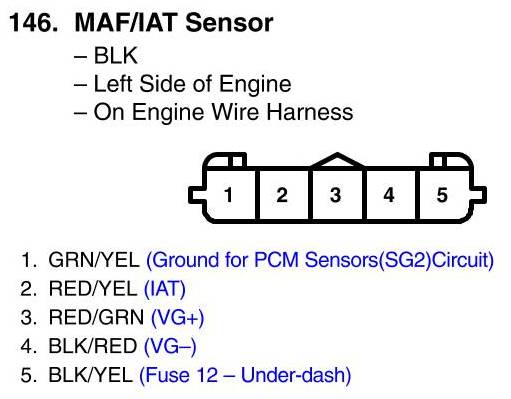

Air Flow Meter/Sensor
Air Flow Meter/Sensor
