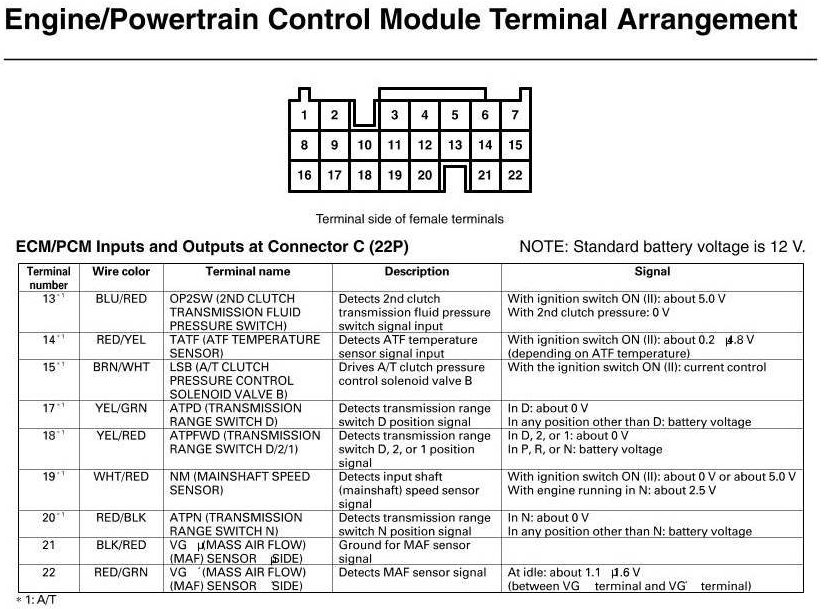

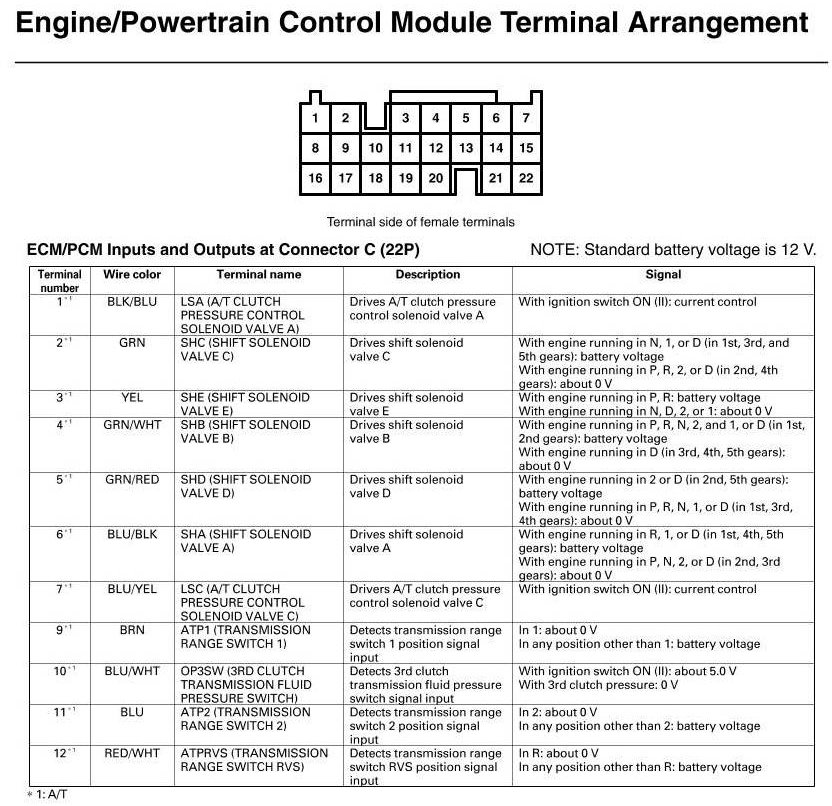

Home >> Honda >> 2010 >> Element 4WD L4-2.4L >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Powertrain Management >> Relays and Modules - Computers and Control Systems >> Engine Control Module >> Testing and Inspection >> Pinout Values and Diagnostic Parameters >> ECM/PCM Inputs And Outputs At Connector C
