Trailer Lighting Module
>>

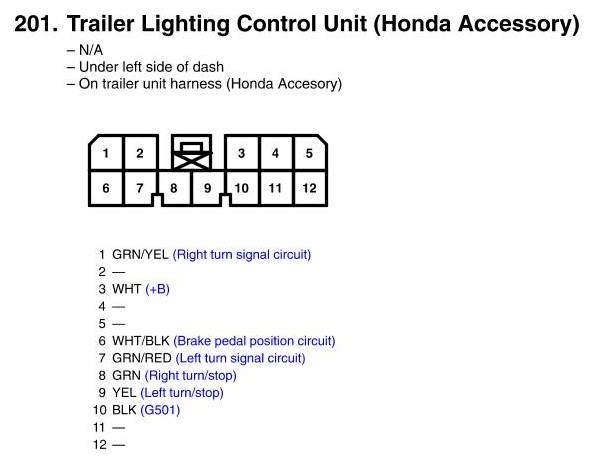

Trailer Lighting Control Unit Connector View (Honda Accessory)
Trailer Lighting Control Unit Connector View (Honda Accessory)
